Zhengzhou Zhongkeda Refractory Materials Co., Ltd
Ceramic & Pottery Kiln Solutions
Reliable Refractory Materials for Ceramic, Pottery & High-Temperature Firing Kilns
| We supply refractory bricks, insulating materials and ceramic fiber products for ceramic and pottery kilns, helping improve thermal efficiency, lining durability and kiln performance.
• High-Temperature Resistance
• Thermal Insulation
• Custom Kiln Solutions
<a href="https://www.zkdrefractories.com/e_contact/">Get a Quote</a>

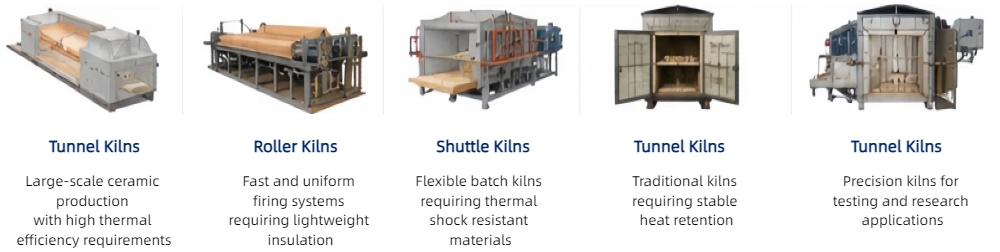

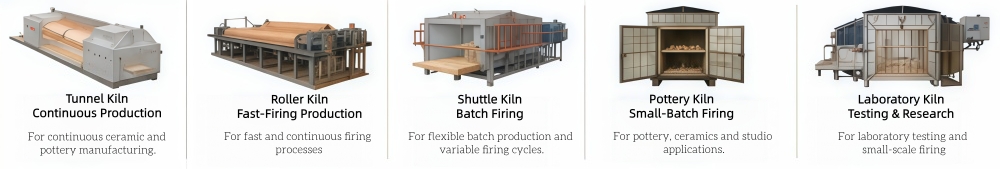

Ceramic & Pottery Kiln Types
We supply refractory and insulation materials for different ceramic and pottery kiln configurations.
Refractory Materials by Kiln Zone
Refractory Lining Structure
|
Lining Layer |
Recommended Materials |
Main Function |
|
Hot Face |
High Alumina Brick |
Wear & heat resistance |
|
High Temperature Area |
Mullite Brick |
High-temperature stability |
|
Insulation Layer |
JM23 / JM26 Insulation Brick |
Reduce heat loss |
|
Backup Insulation |
Ceramic Fiber Blanket |
Thermal insulation |
|
Expansion Joint |
Ceramic Fiber Paper |
Allow thermal expansion |
How We Build Your Ceramic Kiln Refractory Solution
From kiln conditions to material selection, we help you build a refractory lining solution for your ceramic or pottery kiln.
|
01 Understand Your Kiln
Kiln Type · Size · Firing Temperature |
02 Evaluate Operating Conditions
Temperature · Firing Cycle · Atmosphere |
03 Design the Refractory Lining
Working Layer · Insulation · Backup |
04 Select Suitable Materials
Refractory Bricks · Insulation · Ceramic Fiber |
05 Customize & Supply
Sizes · Shapes · Packaging |
|
We first understand your kiln type, dimensions and basic operating conditions. |
We evaluate the temperature, firing cycle and operating environment to understand the refractory requirements. |
We determine the suitable lining structure for different parts of the kiln. |
Materials are selected according to temperature, lining position, insulation requirements and service conditions. |
Custom dimensions, special shapes and export packaging can be supplied according to your requirements. |

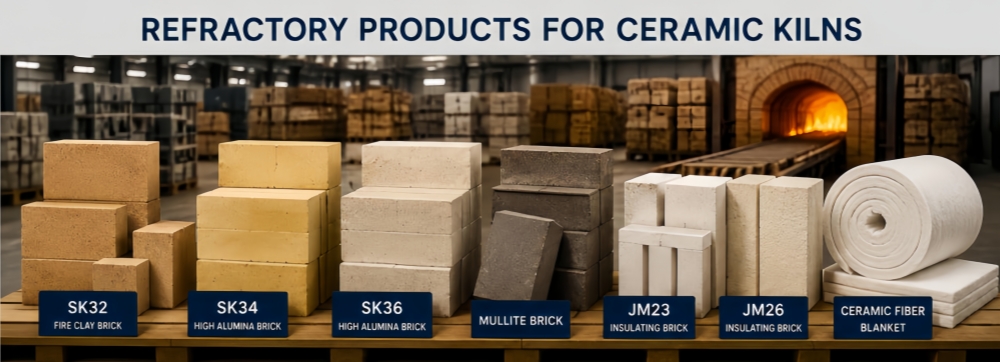

Recommended Materials & Typical Properties
|
Material |
Al₂O₃ (%) |
Typical Service Temperature |
Typical Use |
| <a href="https://www.zkdrefractories.com/e_productshow/?26-SK32-Fire-Clay-Brick-Supplier--Fire-Bricks-for-Industrial-Furnaces--Kilns-26.html">SK32 Fire Clay Brick</a> | 38 |
1400℃ |
General kiln areas |
|
<a href="https://www.zkdrefractories.com/e_productshow/?13-Custom-SK36-SK37-SK38-SK40-High-Alumina-Brick-Industrial-Fire-Brick-13.html">SK34 High Alumina Brick</a> |
48 |
1450℃ |
High-Temperature Area |
|
<a href="https://www.zkdrefractories.com/e_productshow/?23-55-High-Alumina-Brick--High-Temperature-Refractory-Brick-23.html">SK36 High Alumina Brick</a> |
55 |
1500℃ |
Hot Face |
|
<a href="https://www.zkdrefractories.com/e_productshow/?18-Mullite-Brick-18.html">Mullite Brick</a> |
65-75 |
1550–1700℃ |
High-Temperature Area |
| <a href="https://www.zkdrefractories.com/e_productshow/?20-JM23-Insulation-Brick--IFB-Lightweight-Mullite-Brick-20.html">JM23 Insulating Brick</a> | 42 |
1260℃ |
Insulating |
| <a href="https://www.zkdrefractories.com/e_productshow/?21-JM26-Insulation-Brick--Lightweight-IFB-for-Kiln-Insulation-21.html">JM26 Insulating Brick</a> | 48 |
1430℃ |
Insulating |
Why Choose ZKD for Ceramic Kiln Refractories?
Factory Direct Supply：Direct from our refractory manufacturing facility.
Customized Sizes：Bricks and insulation materials can be supplied according to drawings and dimensions.
Complete Refractory Package：Working-layer bricks, insulation bricks and ceramic fiber products from one supplier.
Technical Support：Material recommendations based on kiln type and operating conditions.

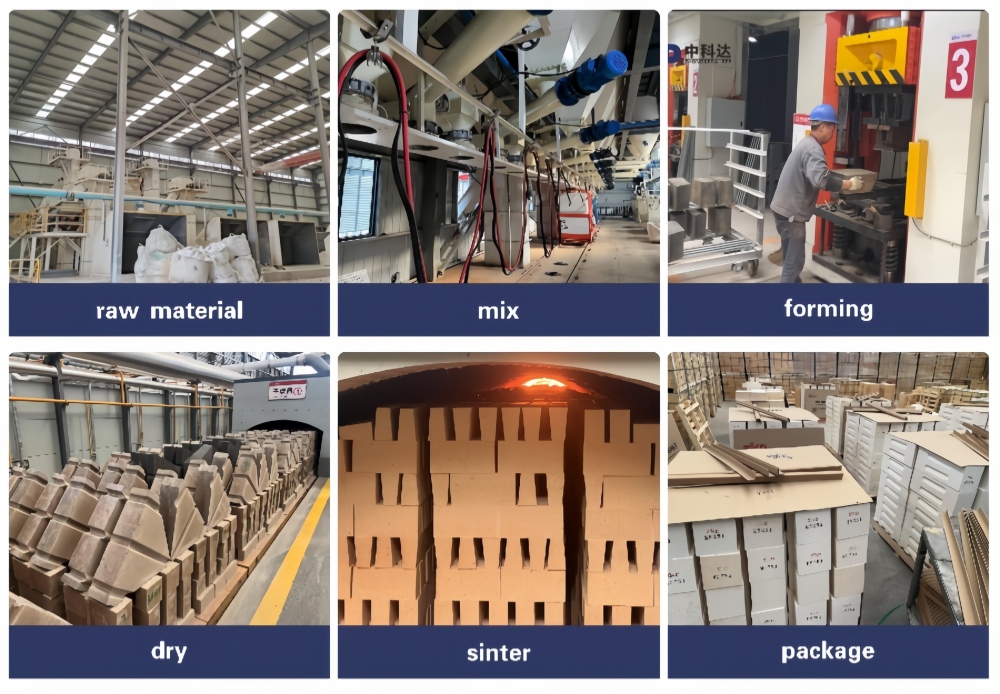

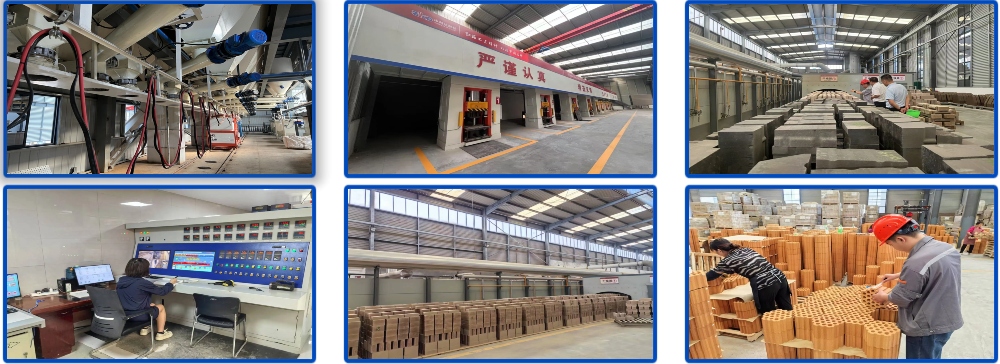

From Raw Materials to Finished Refractories
Raw Material → Pressing → Drying → Tunnel Kiln Firing → Quality Inspection → Packing
Ceramic & Pottery Kiln FAQ
1.What refractory materials are used in ceramic kilns?Fire clay bricks, high alumina bricks, mullite bricks and insulating materials are commonly selected according to kiln temperature and lining position.
2.Which refractory brick is best for a ceramic kiln?
The suitable brick depends on kiln type, operating temperature, firing cycle and lining position. High alumina and mullite bricks are commonly used in higher-temperature areas.
3.What insulation materials are recommended for ceramic kilns?
JM23, JM26 and ceramic fiber products can be used depending on the required insulation performance and temperature.
4.Can refractory bricks be customized for ceramic kilns?
Yes. Custom dimensions and special shapes can be manufactured according to drawings or kiln requirements.
5.Can you supply both working-layer and insulation materials?
Yes. ZKD can supply refractory bricks, insulating bricks and ceramic fiber products as a complete refractory package.
6.How do I choose refractory materials for my kiln?
Please provide the kiln type, operating temperature, firing cycle and existing lining structure. Our team can recommend suitable materials.
Need Refractory Materials for Your Ceramic Kiln?
Tell us your kiln type, operating temperature, dimensions and required materials. We can recommend a suitable refractory lining solution.
<a href="https://www.zkdrefractories.com/e_contact/">Get a Quote</a>
