Introduction

Cement kilns operate under severe thermal, chemical and mechanical conditions. The refractory lining must withstand high temperatures, clinker attack, abrasion, thermal cycling and mechanical stress throughout different kiln zones.

For cement plants in Turkey, selecting the right refractory material is important for maintaining kiln stability, extending lining service life and reducing unplanned shutdowns.

ZKD Refractory supplies refractory bricks, castables and other refractory materials for cement kiln applications, with support for material selection, customized sizes and refractory lining projects.

Why Refractory Selection Matters in Cement Kilns

Cement kilns operate under demanding conditions, including high temperature, thermal cycling, abrasion, chemical attack and mechanical stress. The refractory lining must withstand these conditions while protecting the kiln shell and supporting stable operation.

The main factors affecting refractory selection include:

• High Temperature: Different kiln zones are exposed to different thermal conditions and require suitable refractory materials.

• Thermal Shock: Frequent start-ups, shutdowns and temperature changes can cause cracking and spalling.

• Chemical Attack: Clinker, alkalis, sulfur and other components can react with refractory materials and reduce lining life.

• Abrasion: Material movement and dust circulation can cause continuous mechanical wear.

• Mechanical Stress: Kiln rotation, installation conditions and structural movement can affect refractory lining integrity.

Therefore, refractory selection should not be based on temperature alone. The kiln zone, operating conditions, chemical environment, abrasion level and installation method should all be considered.

Choosing the right refractory material for each area can help reduce premature lining failure, extend service life and minimize unplanned shutdowns.

Refractory Materials for Different Cement Kiln Zones

A cement rotary kiln is exposed to different temperatures, chemical conditions and mechanical stresses along its length. Therefore, refractory materials should be selected according to the specific requirements of each kiln zone.

Kiln Zone	Main Working Conditions	Typical Refractory Materials
Preheater	Thermal cycling, abrasion, alkaline compounds	High Alumina Brick, Refractory Castables
Calciner	High temperature, thermal cycling, abrasion, chemical attack	High Alumina Brick, Refractory Castables
Transition Zone	High temperature, abrasion, mechanical stress, chemical attack	High Alumina Brick, Spinel-based Refractories
Burning Zone	High temperature, clinker attack, thermal cycling	Magnesia Spinel Brick
Cooler	Thermal shock, temperature fluctuations, abrasion	High Alumina Brick, Refractory Castables

Note: Refractory selection depends on kiln design, operating conditions, clinker chemistry and maintenance practices. The materials listed above are general options and should be evaluated according to the actual working conditions of each kiln.

Key Refractory Materials for Cement Kilns

Different zones of a cement kiln require refractory materials with different combinations of thermal stability, chemical resistance, abrasion resistance and mechanical strength. ZKD Refractories supplies a range of refractory bricks and castables for cement kiln and other high-temperature industrial applications.

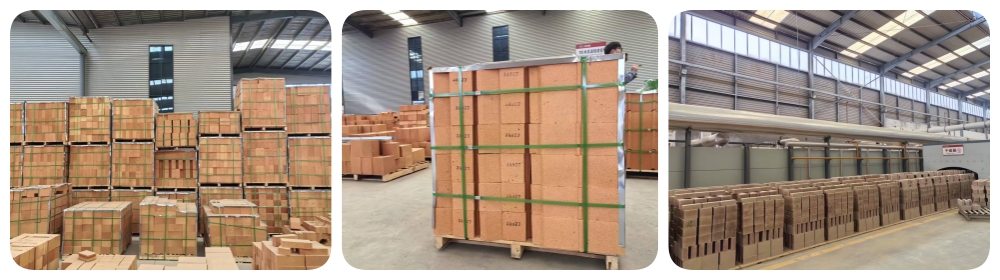

Magnesia Spinel Bricks

Magnesia spinel bricks are mainly used in demanding high-temperature areas of cement rotary kilns, particularly the burning zone and transition zone. They offer good resistance to clinker-related chemical attack, thermal cycling and high-temperature conditions.

Key Property	Typical Value
MgO	≥ 85%
Bulk Density	≥ 2.85 g/cm³
Apparent Porosity	≤ 18%
CCS	≥ 50 MPa
Refractoriness	≥ 1770°C

Typical Applications: Burning Zone, Transition Zone and other high-temperature areas.

→ View Magnesia Spinel Bricks

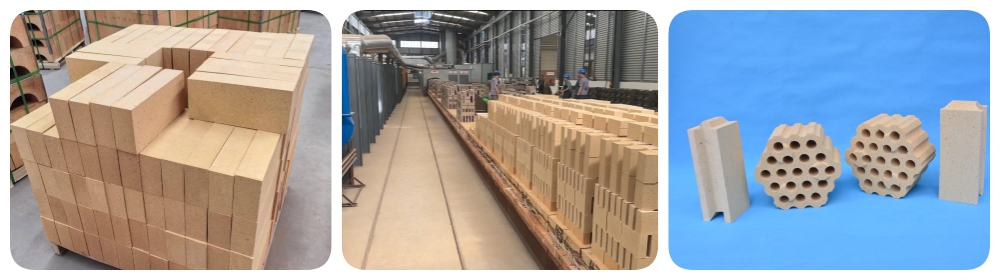

High Alumina Bricks

High alumina bricks provide good resistance to high temperature, abrasion and chemical attack. Different alumina grades can be selected according to the working conditions and performance requirements of the application.

Key Property	Typical Value
Al₂O₃	≥ 75%
Bulk Density	≥ 2.55 g/cm³
Apparent Porosity	≤ 22%
CCS	≥ 60 MPa
Refractoriness	≥ 1790°C

Typical Applications: Preheater, calciner, industrial furnaces and other high-temperature areas.

→ View High Alumina Bricks

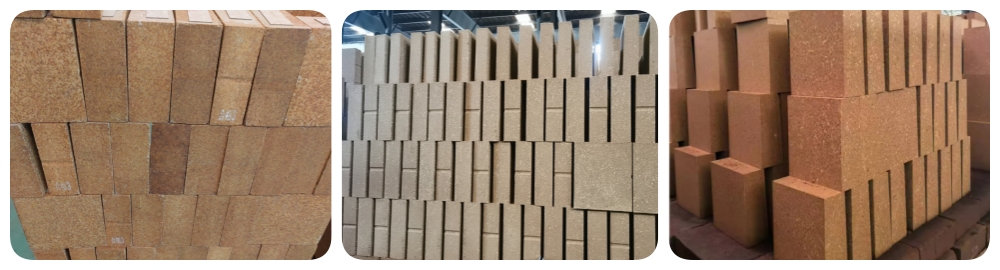

Fire Clay Bricks

Fire clay bricks are a cost-effective option for moderate-duty refractory applications. They provide suitable thermal resistance and mechanical strength where higher-grade alumina or basic refractories are not required.

Key Property	Typical Value
Al₂O₃	≥ 42%
Bulk Density	≥ 2.00 g/cm³
Apparent Porosity	≤ 24%
CCS	≥ 30 MPa
Fe₂O₃	≤ 2.0%

Typical Applications: Industrial furnace linings, auxiliary refractory structures and suitable moderate-duty areas.

→ View Fire Clay Bricks

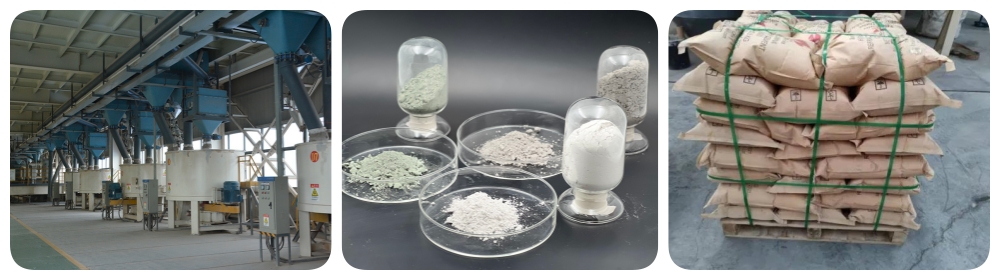

Refractory Castables

Refractory castables provide a flexible solution for monolithic linings, repairs and areas with complex shapes. Different formulations can be selected according to temperature, abrasion, chemical attack and installation requirements.

Key Property	Typical Value
Al₂O₃	≥ 70%
Bulk Density	≥ 2.30 g/cm³
PLC	±1.0%
CCS	≥ 50 MPa
Refractoriness	Up to 1500°C

Typical Applications: Preheaters, coolers, complex-shaped areas and refractory repairs.

→ View Refractory Castables

Important Note

The specifications above represent typical product grades. Actual values may vary according to refractory grade, raw materials, manufacturing process and application requirements. ZKD can provide detailed TDS and recommend suitable grades based on kiln design and operating conditions.

Common Causes of Refractory Failure in Cement Kilns
Refractory failure can lead to unplanned shutdowns, frequent maintenance and higher operating costs. In cement kilns, premature refractory wear is often caused by a combination of material selection, operating conditions and installation quality.

1. Choosing the Wrong Refractory

A refractory material that performs well in one kiln zone may not be suitable for another. Selecting a material based only on its temperature rating can result in premature wear or failure.

The kiln zone, chemical environment, abrasion level and thermal cycling should all be considered when selecting the refractory lining.

2. Excessive Wear and Abrasion

Clinker, raw materials and dust can continuously wear the refractory lining. High-wear areas require refractory materials with appropriate abrasion resistance, density and mechanical strength.

3. Chemical Attack

Refractory linings can be exposed to clinker and aggressive compounds such as alkalis, sulfur and chlorine. These chemical interactions can weaken the refractory and accelerate corrosion, cracking or spalling.

4. Thermal Shock

Repeated kiln start-ups, shutdowns and rapid temperature changes can put significant stress on the refractory lining. Poor thermal shock resistance can result in cracking and spalling and shorten lining life.

5. Poor Installation

Refractory performance depends not only on the material itself but also on how it is installed. Incorrect brickwork, inadequate expansion joints, improper mortar application, poor anchoring or incorrect castable installation can lead to premature failure.

6. Improper Castable Dry-Out

Castables require controlled curing, drying and heat-up. Heating a newly installed castable too quickly can cause trapped moisture to turn into steam, resulting in cracking or explosive spalling.

How Can Refractory Service Life Be Improved?

Longer refractory service life starts with the right material for the right application. Proper installation, controlled heating and stable kiln operation are equally important.

For this reason, refractory selection and installation should be considered together when planning cement kiln maintenance or relining work.

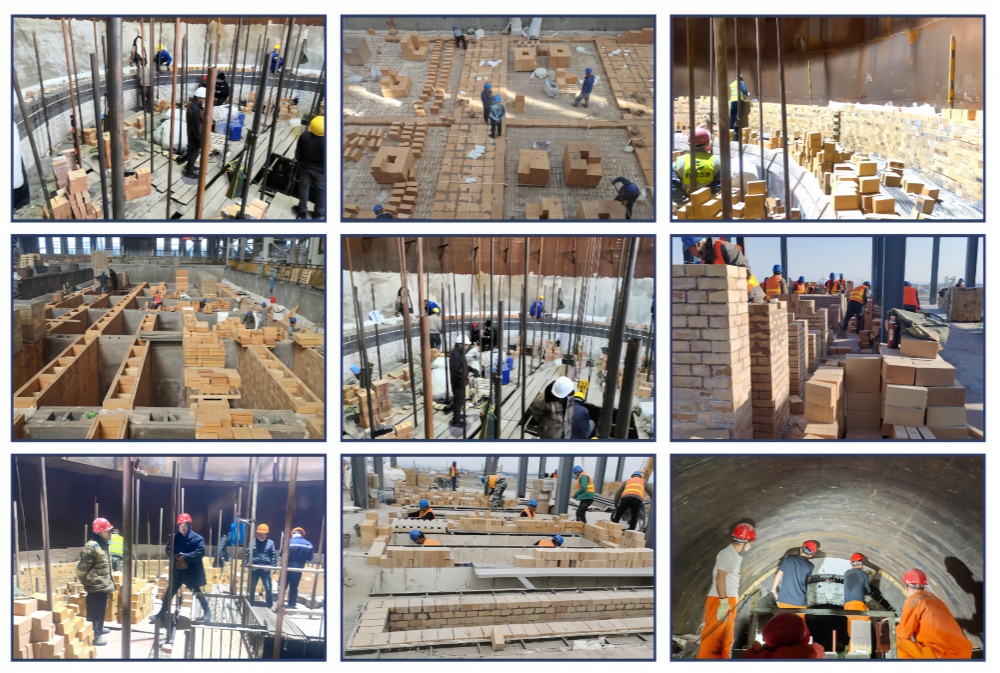

Cement Kiln Refractory Installation and Maintenance

Refractory service life depends not only on material quality but also on proper installation and maintenance. Correct brickwork, expansion joints, mortar application and castable installation can help reduce premature lining damage and improve kiln reliability.

Depending on project requirements, refractory installation and maintenance work may include:

• Refractory brick installation – installation of refractory bricks according to the kiln lining design and required brick layout.

• Castable installation – installation of monolithic refractories for areas requiring castable linings or repairs.

• Refractory lining repair – replacement or repair of damaged refractory sections during maintenance or shutdown periods.

• Kiln maintenance – inspection and maintenance of refractory linings to help identify potential problems before major damage occurs.

• Shutdown refractory work – refractory replacement and repair during planned kiln shutdowns.

For qualified projects, refractory installation and contracting services can be provided together with refractory material supply.

Why Installation Matters

Even a high-quality refractory can have a shorter service life if it is incorrectly installed. Proper material selection, installation, curing, dry-out and kiln operation should therefore be considered together when planning a refractory lining project.

Refractory Requirements for Cement Plants in Turkey

Cement plants in Turkey may have different kiln designs, production capacities and operating conditions. Refractory selection should therefore be based on the specific requirements of each project.

Project Information	Examples / Details
Kiln Type	Rotary kiln, preheater / precalciner system
Kiln Capacity	t/day
Application Zone	Burning zone, transition zone, preheater, cooler
Current Refractory	Brick or castable grade
Brick Size	Standard or customized size
Operating Conditions	Temperature, abrasion, chemical attack
Main Problem	Wear, cracking, spalling, short service life
Required Quantity	Bricks / castables
Drawings or Photos	Recommended for project evaluation

Providing this information helps us understand the working conditions and recommend suitable refractory materials for the project.

ZKD Refractory can supply refractory bricks, castables and customized products for cement kiln applications. For qualified projects, installation and contracting support can also be provided.

How to Choose a Refractory Supplier for a Cement Plant

Choosing a refractory supplier is not only about comparing product prices. For a cement kiln project, the supplier should be able to provide suitable materials, reliable technical support and consistent project service.

What to Check	Why It Matters
Technical Capability	The supplier should understand different kiln zones and recommend materials based on actual operating conditions
Manufacturing Capability	Stable production and process control help ensure consistent refractory quality from batch to batch
Quality Control	Technical data, testing and quality inspection are important for evaluating refractory performance
Product & Customization	Different kiln projects may require different refractory grades, brick sizes or castable formulations
Export Experience	Proper packaging, container loading and shipping arrangements are important for overseas projects
Installation Support	For larger projects, material supply combined with refractory installation can simplify project coordination

A reliable refractory supplier should be able to support the project from material selection and production to delivery and, when required, installation.

Refractory Materials and Services from ZKD Refractory

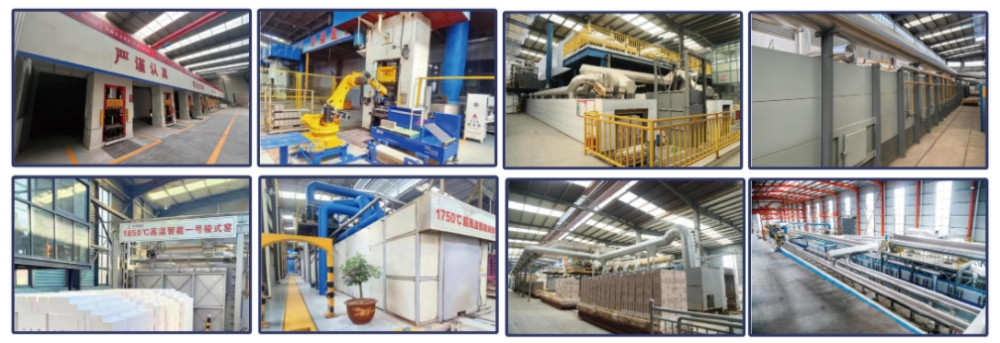

ZKD Refractory is a manufacturer and supplier of refractory materials for cement kilns and other high-temperature industrial applications.

Our product range includes magnesia spinel bricks, high alumina bricks, fire clay bricks and refractory castables, with different grades and sizes available according to project requirements.

We provide technical data and customized refractory products for specific applications. For overseas projects, we also support export packaging, container loading and delivery arrangements.

For qualified projects, refractory brick installation, castable installation, lining repair and shutdown refractory work can be provided together with material supply.

Our goal is to provide refractory materials and project support based on the actual kiln conditions and maintenance requirements.

Need a Refractory Solution for Your Cement Kiln?

Planning a cement kiln relining project in Turkey?

Send us your kiln type, application zone, current refractory specification, brick size and required quantity. Photos, drawings or information about existing refractory problems are also helpful.

Our team can review your requirements and recommend suitable refractory materials for your project.

[Send Your Kiln Requirements]

Frequently Asked Questions

What refractory materials are used in cement rotary kilns?

Common refractory materials include magnesia spinel bricks, high alumina bricks, fire clay bricks and refractory castables. The appropriate material depends on the kiln zone and operating conditions.

Which refractory is used in the burning zone of a cement kiln?

Magnesia-based refractories, including magnesia spinel bricks, are commonly used in demanding burning-zone applications because of their resistance to clinker attack and high-temperature conditions.

How do I choose refractory materials for a cement kiln?

Refractory selection should consider the kiln zone, temperature, chemical attack, abrasion, thermal cycling and existing lining conditions, rather than temperature alone.

What causes refractory lining failure in cement kilns?

Common causes include incorrect material selection, excessive abrasion, chemical attack, thermal shock, poor installation and improper castable dry-out.

Can refractory bricks be customized for cement plants?

Yes. Refractory bricks can be supplied in different grades, sizes and specifications according to project requirements. Drawings or existing brick dimensions can be provided for evaluation.

Do you provide cement kiln refractory installation services?

For qualified projects, refractory brick installation, castable installation, lining repair and shutdown refractory work can be provided together with material supply.
