Why Does Refractory Lining Fail in Cement Kilns? Common Causes and Solutions
August 16 Post By Orietta
1.Introduction
Refractory lining failure can lead to unplanned shutdowns, frequent repairs and higher maintenance costs in cement plants. A damaged lining may also affect kiln stability and reduce production efficiency.
However, refractory failure is rarely caused by material quality alone. Material selection, operating conditions, installation quality and maintenance practices can all have a significant impact on refractory service life.
Understanding the main causes of refractory lining failure can help cement plant operators identify potential problems, choose more suitable refractory materials and reduce unexpected maintenance.
2.What Causes Refractory Lining Failure in Cement Kilns?
Cement kiln refractories are exposed to high temperatures, abrasion, chemical attack and repeated thermal cycling. When the refractory material, installation method or operating conditions do not match the application, premature lining failure can occur.
|
Common Cause |
Typical Result |
|
Incorrect Material Selection |
Premature wear or failure |
|
Excessive Abrasion |
Lining wear and thinning |
|
Chemical Attack |
Corrosion and structural damage |
|
Thermal Shock |
Cracking and spalling |
|
Mechanical Stress |
Brick movement and cracking |
|
Poor Installation |
Premature lining failure |
|
Improper Castable Dry-Out |
Cracking or spalling |
3.Choosing the Wrong Refractory
One of the most common causes of premature refractory failure is selecting a material based mainly on its maximum service temperature.
A cement kiln does not have the same working conditions throughout the entire system. The burning zone, transition zone, preheater, calciner and cooler can be exposed to different levels of temperature, abrasion, chemical attack and thermal cycling.
A refractory that performs well in one area may not be suitable for another. Refractory selection should therefore be based on the actual kiln zone and operating conditions, rather than temperature rating alone.
| Factor |
Why It Matters |
|
Temperature |
Determines the required high-temperature performance |
| Abrasion |
Affects lining wear and service life |
|
Chemical Attack |
Determines resistance to alkalis, sulfur and clinker |
| Thermal Shock |
Affects cracking and spalling resistance |
|
Mechanical Stress |
Influences lining stability |
Read more: <a href="https://www.zkdrefractories.com/html_news/?14-Refractory-Solutions-for-Cement-Kilns-in-Turkey-14.html">Refractory Materials for Cement Kilns in Turkey</a>

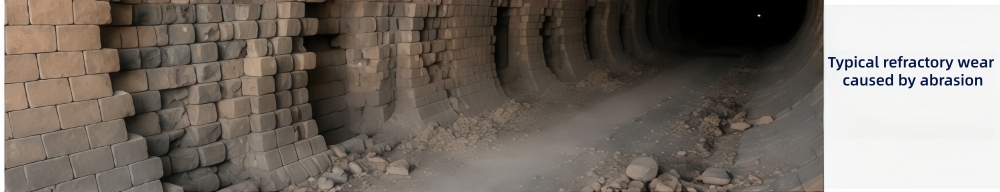

4.Excessive Wear and Abrasion
Cement kiln refractories are continuously exposed to clinker, raw materials, dust and gas flow. In high-wear areas, these materials can gradually erode the refractory surface and reduce lining thickness.
Excessive abrasion is particularly common where the refractory is exposed to continuous material movement or mechanical impact. If the selected material does not have sufficient abrasion resistance and mechanical strength, premature wear can occur.
As the lining becomes thinner, its ability to protect the kiln shell decreases, increasing the risk of further refractory damage.

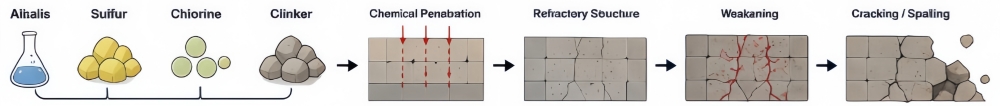

5.Chemical Attack
Cement kiln refractories are exposed to clinker and aggressive compounds such as alkalis, sulfur and chlorine during operation.
These compounds can penetrate or react with the refractory structure, weakening the material and accelerating corrosion, cracking or spalling. In some kiln zones, clinker liquid phase can also contribute to chemical damage.
For this reason, refractory selection should take the chemical environment of the kiln into account rather than focusing on operating temperature alone.

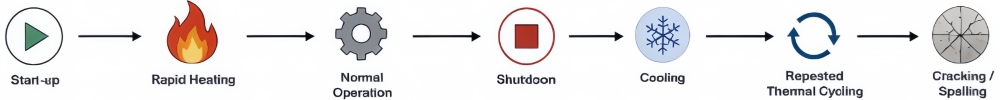

6.Thermal Shock
Cement kilns may experience repeated start-ups, shutdowns and temperature changes during operation and maintenance.
Rapid heating and cooling create thermal stress within the refractory lining. Repeated thermal cycling can cause cracking, spalling and loss of lining integrity, especially when the selected refractory is not suitable for the operating conditions.
For areas exposed to frequent temperature fluctuations, thermal shock resistance should be considered during refractory selection.

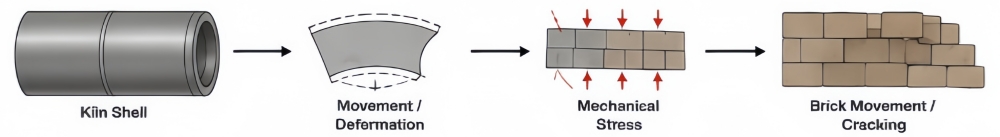

7.Mechanical Stress and Kiln Movement
Refractory linings are also affected by the mechanical conditions of the kiln. Kiln shell movement, deformation, vibration and insufficient expansion allowance can place additional stress on the refractory lining.
Excessive mechanical stress may result in brick movement, cracking or localized lining damage.
Proper lining design, brickwork and expansion allowance are therefore important for maintaining refractory stability during kiln operation.

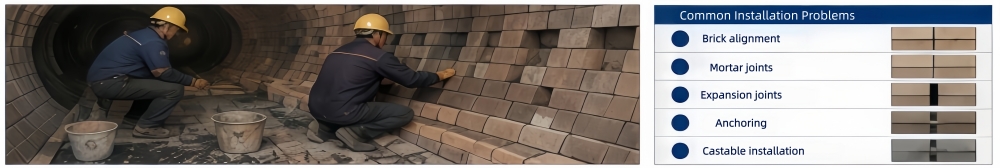

8.Poor Refractory Installation
Even a high-quality refractory can fail prematurely if it is incorrectly installed.
Common installation problems include incorrect brick alignment, improper mortar joints, inadequate expansion joints, poor anchoring and incorrect castable installation.
These problems can create uneven stress, gaps or weak points within the lining and may significantly reduce refractory service life.
Proper installation should therefore be considered as an important part of the overall refractory solution, not as a separate step after material selection.

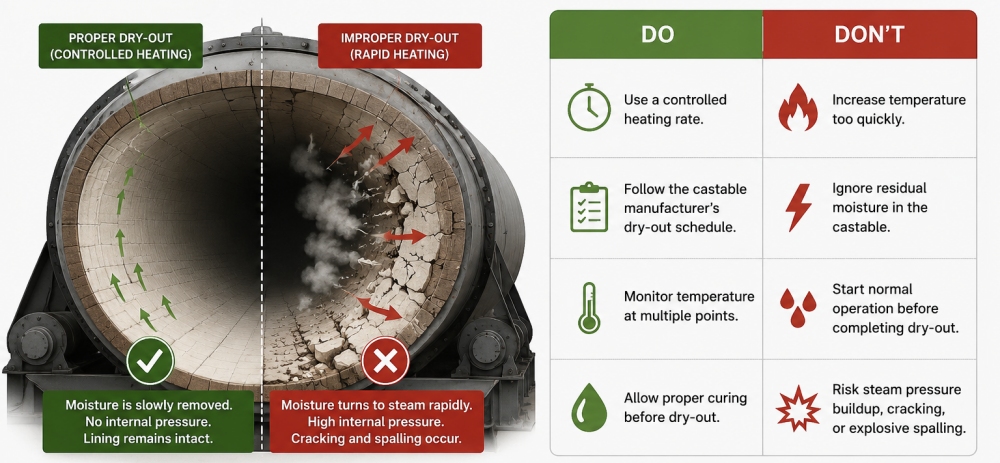

9.Improper Castable Dry-Out
Refractory castables contain moisture after installation and require proper curing, drying and heat-up before normal operation.
If the temperature is increased too quickly, residual moisture can turn into steam and create internal pressure within the castable. This may result in cracking or explosive spalling.
A controlled dry-out procedure should therefore be followed according to the castable manufacturer's recommendations.
|
Proper Dry-Out |
Risky Practice |
|
Controlled heating |
Rapid temperature increase |
|
Follow the recommended schedule |
Heating too quickly |
|
Allow proper curing |
Insufficient curing |
|
Monitor temperature |
Ignoring residual moisture |
10.How to Extend Refractory Lining Service Life

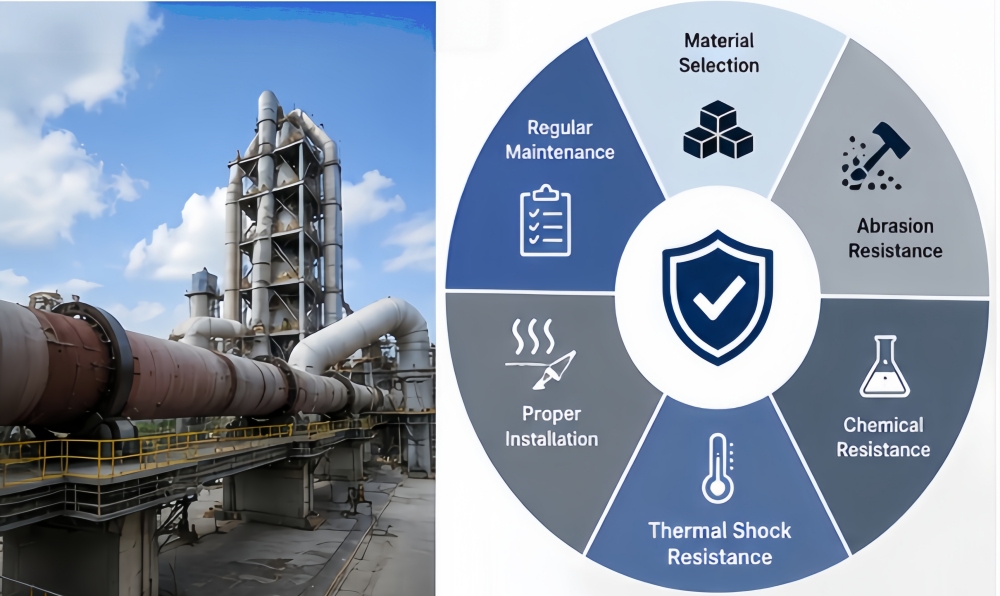

Extending refractory lining life requires more than selecting a high-temperature material. Material selection, installation, kiln operation and maintenance should all be considered together.
| Factor |
Recommended Approach |
|
Material Selection |
Match the refractory to the kiln zone and operating conditions |
|
Abrasion |
Consider abrasion resistance and mechanical strength |
|
Chemical Attack |
Select materials according to the kiln's chemical environment |
|
Thermal Shock |
Consider thermal shock resistance |
|
Installation |
Follow proper brickwork and castable installation procedures |
|
Castable Dry-Out |
Use a controlled heating schedule |
|
Maintenance |
Inspect the refractory lining regularly |
A suitable refractory material combined with proper installation and maintenance can help reduce premature lining failure and extend service life.

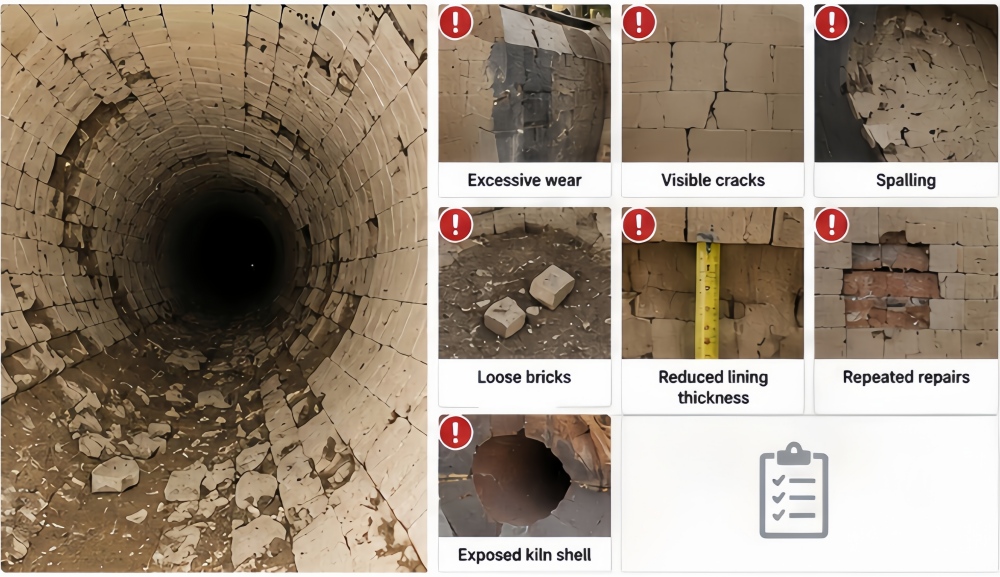

11.When Should Refractory Lining Be Replaced?
There is no fixed replacement interval for every cement kiln. Refractory lining life depends on the kiln design, operating conditions, refractory type and maintenance history.
Checklist
Signs that refractory repair or replacement may be required:
✓ Excessive lining wear
✓ Visible cracks
✓ Spalling or surface damage
✓ Loose or displaced bricks
✓ Significant reduction in lining thickness
✓ Repeated local repairs
✓ Exposed or overheated kiln shell
Regular inspections during planned shutdowns can help identify refractory problems before they develop into major damage or unplanned downtime.
12.Refractory Materials and Installation Support
ZKD Refractory supplies refractory bricks and castables for cement kilns and other high-temperature industrial applications.
Our product range includes magnesia spinel bricks, high alumina bricks, fire clay bricks and refractory castables, with customized grades and sizes available according to project requirements.
For qualified projects, we can also provide refractory brick installation, castable installation, lining repair and shutdown refractory work together with material supply.
Our goal is to provide refractory materials and project support based on the actual kiln conditions, operating requirements and maintenance needs.
13.CTA
Is Your Cement Kiln Experiencing Refractory Problems?
Tell us about your kiln zone, current refractory material, main lining problem and required quantity. Photos, drawings or existing refractory specifications can also help us evaluate the application.
14.FAQ
Why does refractory lining fail in cement kilns?
Refractory lining can fail due to thermal shock, abrasion, chemical attack, mechanical stress, improper material selection or poor installation.
What causes refractory spalling?
Spalling is mainly caused by thermal stress, rapid temperature changes, chemical attack and mechanical damage.
What causes cracks in refractory bricks?
Cracks can result from thermal expansion, thermal shock, mechanical stress, improper installation or uneven heating.
How can refractory lining life be extended?
Choose refractory materials according to each kiln zone, ensure proper installation and drying, and maintain stable kiln operation.
How often should cement kiln refractory lining be replaced?
There is no fixed replacement interval. Service life depends on kiln conditions, refractory quality, installation and operating practices.
Can refractory installation affect lining service life?
Yes. Proper brick installation, joints, castable mixing, curing and drying can significantly improve refractory lining service life.
