How to Choose Refractory Materials for Ceramic Kiln
August 18 Post By Orietta
Introduction
Ceramic kilns operate under repeated high-temperature firing cycles. During operation, the kiln lining is exposed to high temperatures, thermal shock, mechanical stress and, in some applications, chemical attack from glazes and kiln atmospheres.
Choosing the right refractory material is therefore important for maintaining stable kiln temperatures, reducing heat loss and extending lining service life.
However, maximum temperature rating alone is not enough to determine which refractory material is suitable for a ceramic kiln. The kiln design, firing temperature, heating and cooling cycles, insulation requirements and actual working conditions should all be considered.
What Refractory Materials Are Used in Ceramic Kilns?

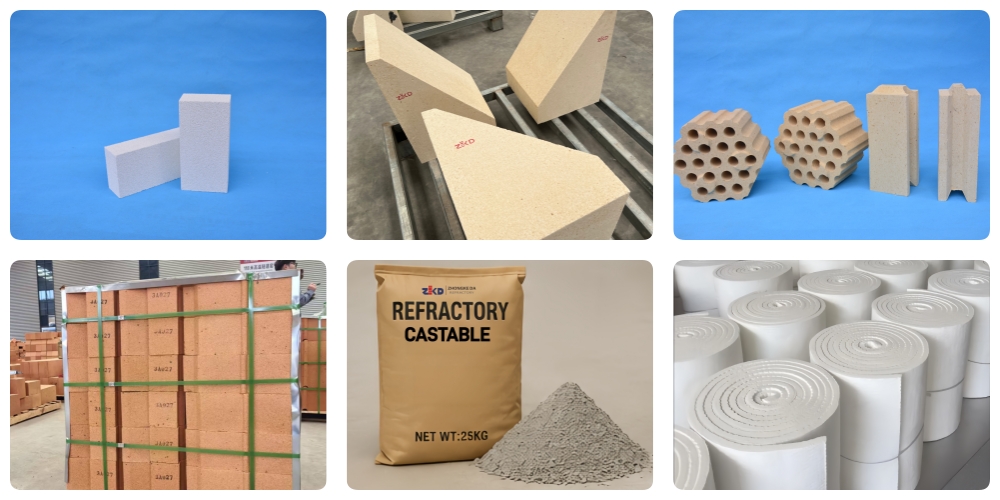

Different parts of a ceramic kiln may require different refractory materials. Common options include fire clay bricks, high alumina bricks, mullite bricks, insulation bricks, ceramic fiber and refractory castables.
<a href="https://www.zkdrefractories.com/e_products/Fireclay-Brick-6-30.html">Fire Clay Brick</a> is commonly used for general kiln lining applications where moderate temperature resistance and good thermal stability are required.
<a href="https://www.zkdrefractories.com/e_products/High-Alumina-Brick-6-28.html">High Alumina Brick</a> provides higher alumina content, good refractoriness and mechanical strength, making it suitable for higher-temperature areas.
<a href="https://www.zkdrefractories.com/e_products/Mullite-Brick-6-33.html">Mullite Brick</a> offers good high-temperature stability, low thermal expansion and resistance to thermal shock, making it suitable for demanding ceramic kiln applications.
<a href="https://www.zkdrefractories.com/e_products/Mullite-Insulation-Brick-8-24.html">Mullite Insulation Brick</a> is mainly used where low thermal conductivity and reduced heat loss are important.
<a href="https://www.zkdrefractories.com/e_products/Ceramic-Fiber-9.html">Ceramic Fiber</a> provides lightweight and efficient thermal insulation and can be used as an insulation layer or for specific kiln components.
<a href="https://www.zkdrefractories.com/e_products/Refractory-Castable-7-14.html">Refractory Castable</a> can be used for kiln floors, repairs, complex shapes and monolithic refractory sections.
The right combination depends on the kiln structure and operating conditions rather than on temperature alone.
What Should You Consider When Choosing Ceramic Kiln Refractories?
Choosing refractory materials for a ceramic kiln is not simply about selecting the material with the highest temperature rating.
The kiln lining is exposed to high temperature, repeated heating and cooling, mechanical stress, chemical attack and heat loss. These conditions should all be considered when selecting the right refractory material.

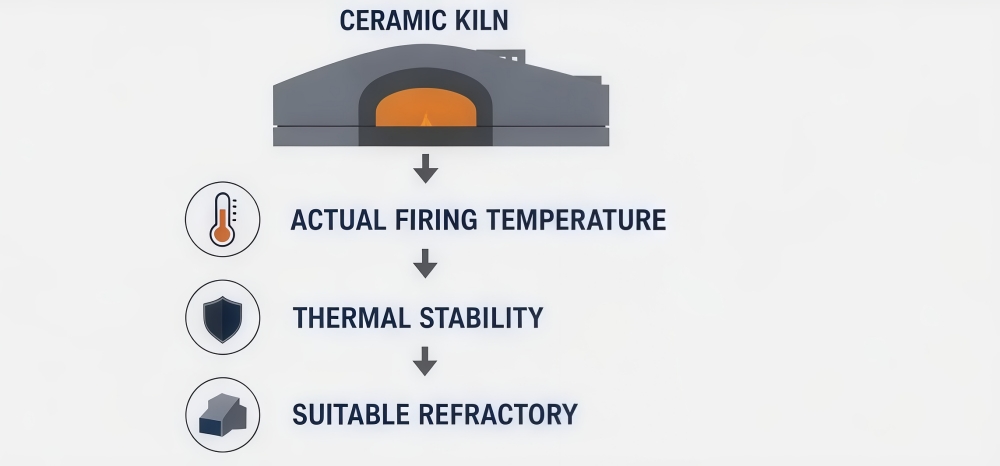

1.Operating Temperature
Don't choose refractory materials by temperature alone.
The first thing to check is the kiln's actual firing temperature.
But a higher temperature rating does not automatically mean better performance.
For example, a refractory material may withstand very high temperatures but have poor thermal shock resistance or unsuitable insulation properties.
Think about:
🔥 Firing temperature
🔄 Heating & cooling cycles
🏗️ Mechanical load
🧱 Refractory structure
| Temperature is the starting point — not the only factor.

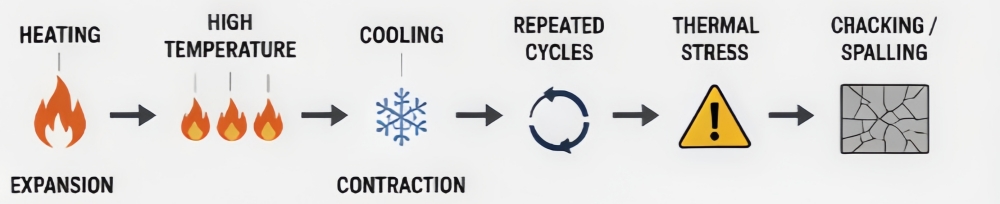

2.Thermal Shock Resistance
Repeated heating and cooling can damage refractory linings.
Ceramic kilns are not kept at the same temperature all the time.
A typical firing cycle may look like:
Heating → Firing → Cooling → Reheating
Every cycle causes the refractory material to expand and contract.
If the material cannot handle these temperature changes, cracks and spalling may develop over time.
For kilns with frequent firing cycles, thermal shock resistance should be an important part of refractory selection.
<a href="https://www.zkdrefractories.com/e_products/Mullite-Brick-6-33.html">Mullite-based refractory materials</a> can be considered where good thermal stability and resistance to repeated temperature changes are required.
3. Mechanical Strength & Abrasion Resistance

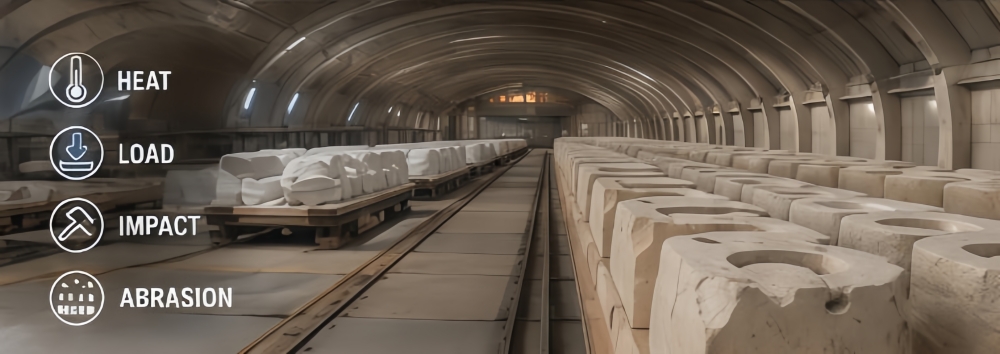

Kiln floors face more than high temperatures.
The kiln floor and loading areas may be exposed to:
• Heavy kiln furniture
• Ceramic products
• Loading and unloading
• Mechanical impact
• Abrasion
So these areas need refractory materials with sufficient mechanical strength and wear resistance.
<a href="https://www.zkdrefractories.com/e_products/High-Alumina-Brick-6-28.html">High alumina bricks</a> can be considered for applications where higher strength and resistance to demanding operating conditions are required.
| For kiln floors, temperature resistance is only part of the requirement. Mechanical strength matters too.

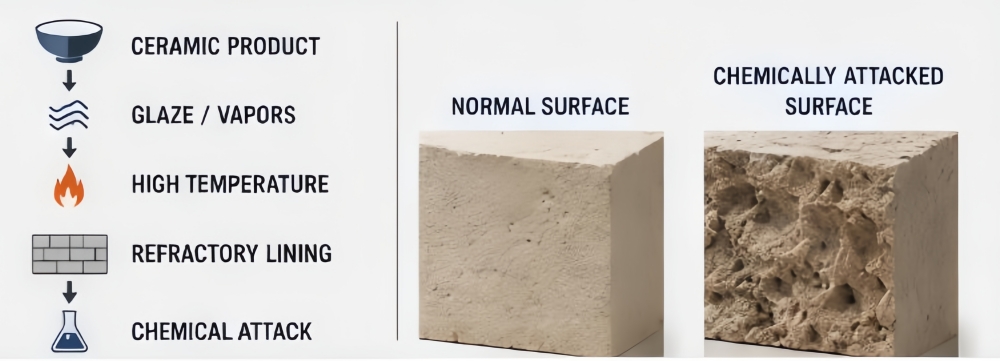

4.Chemical Attack
The material being fired can also affect the refractory lining.
During ceramic firing, glazes, alkaline compounds, dust and other chemical components may react with the refractory lining at high temperatures.
Over time, chemical attack can cause:
Surface deterioration → Weakening → Spalling → Shorter Service Life
Therefore, refractory selection should consider the ceramic product, glaze and kiln atmosphere, not just operating temperature.
5.Insulation & Heat Loss
A refractory lining must do more than withstand heat.
It also needs to keep heat inside the kiln.
Poor insulation can lead to:
🔥 Heat loss
⏱️ Longer heating time
⚡ Higher energy consumption
🌡️ Less stable kiln temperature

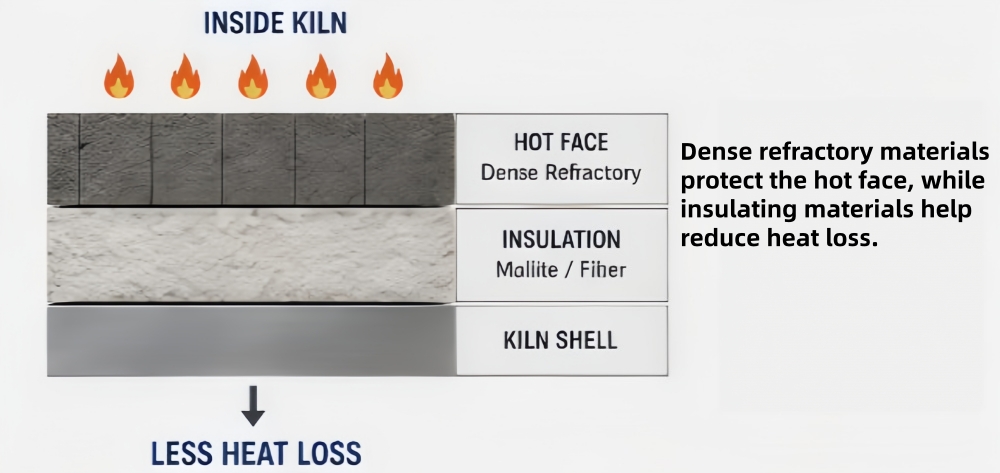

This is why ceramic kilns often use a combination of dense refractory materials and insulating materials.
For example:
<a href="https://www.zkdrefractories.com/e_products/Mullite-Insulation-Brick-8-24.html">Mullite Insulation Brick</a>
→ Good high-temperature insulation
<a href="https://www.zkdrefractories.com/e_products/Ceramic-Fiber-9.html">Ceramic Fiber</a>
→ Lightweight and low thermal conductivity
Fire Clay vs High Alumina vs Mullite: Which Is Better for a Ceramic Kiln?
There is no single refractory material that is best for every ceramic kiln.
The choice depends on temperature, thermal cycling, mechanical requirements, insulation requirements and the specific kiln design.
| Material |
Main Advantages |
Typical Application |
| Fire Clay Brick |
Main Advantages |
Main Advantages |
| High Alumina Brick |
High refractoriness and strength |
High refractoriness and strength |
| Mullite Brick |
Good thermal stability and thermal shock resistance |
High-temperature ceramic kiln applications |
|
Mullite Insulating Brick |
Low thermal conductivity |
Insulation layer |
| Ceramic Fiber |
Lightweight and excellent insulation |
Thermal insulation and selected kiln components |
The best solution is often a combination of different refractory materials rather than using one material throughout the entire kiln.

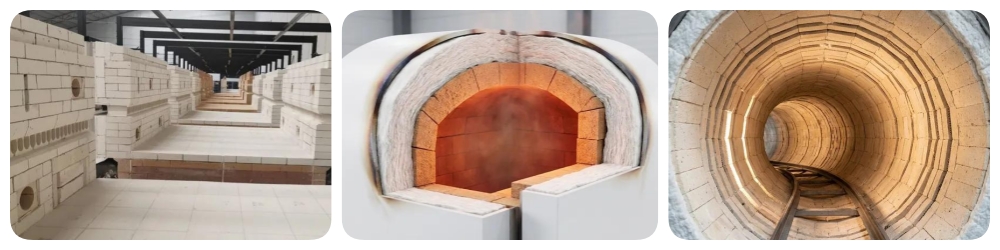

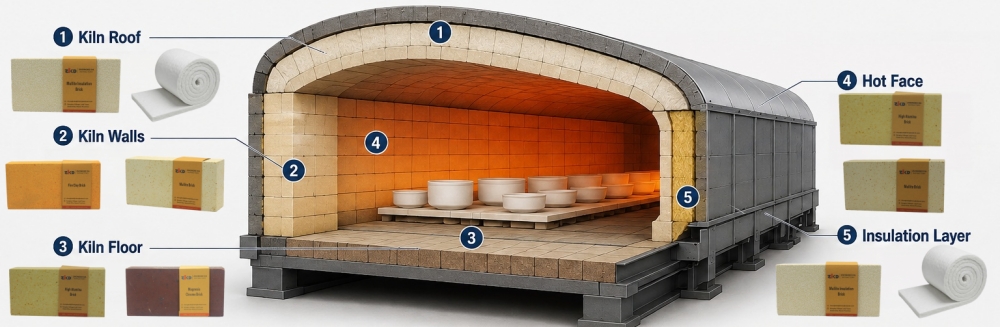

Choosing Refractory Materials for Different Parts of a Ceramic Kiln
Different parts of a ceramic kiln are exposed to different levels of heat, mechanical stress and thermal cycling. Therefore, refractory materials should be selected according to the function and operating conditions of each area.
Kiln Walls
Main requirements:Thermal stability, thermal shock resistance and structural strength.
Kiln walls form the main refractory structure of the kiln and are exposed to repeated heating and cooling cycles. Depending on the firing temperature and kiln design, fire clay bricks, high alumina bricks or mullite bricks may be used.
Kiln Roof
Main requirements:Low weight, thermal insulation and dimensional stability.
The roof must maintain its structure while limiting heat loss. Lightweight refractory materials, insulation bricks and ceramic fiber can be used where reducing heat storage and overall kiln weight is important.
Kiln Floor
Main requirements: Load-bearing capacity and abrasion resistance.
The floor supports kiln furniture, ceramic products and loading equipment. Dense and mechanically strong refractory materials are generally preferred in areas exposed to heavy loads or frequent mechanical contact.
Hot Face
Main requirements: Direct exposure resistance.
The hot face is the inner working surface directly exposed to the firing atmosphere and high temperature. The refractory should be selected according to the actual firing temperature, atmosphere and possible chemical attack.
Insulation Layer
Main requirements:Heat retention and energy efficiency.
The insulation layer reduces heat transfer through the kiln shell. Mullite insulation bricks and ceramic fiber are commonly used in suitable kiln structures to reduce heat loss and improve temperature stability.
The key is not to use the same refractory throughout the kiln, but to match each layer and location with its actual working conditions.*
Common Signs of Ceramic Kiln Refractory Failure
| Problem |
What It May Indicate |
| Cracking |
Thermal shock, thermal stress or improper installation |
|
Spalling |
Thermal cycling, chemical attack or mechanical damage |
|
Excessive Heat Loss |
Damaged or insufficient insulation |
|
Uneven Kiln Temperature |
Uneven insulation or damaged refractory lining |
Early inspection and proper refractory selection can help prevent minor lining problems from developing into major failures.
How to Extend the Service Life of Ceramic Kiln Refractories
Several factors should be considered to improve refractory lining life:
1. Select materials according to actual operating conditions.
Do not select refractory materials based only on maximum service temperature.
2. Use an appropriate insulation system.
Proper insulation can reduce heat loss and thermal stress.
3. Control heating and cooling rates.
Avoid unnecessary thermal shock during kiln operation.
4. Install refractory materials correctly.
Poor installation can create gaps, weak joints and local stress concentrations.
5. Inspect the lining regularly.
Cracks, spalling and damaged insulation should be identified before they become larger problems.
Refractory Materials for Ceramic Kilns from ZKD Refractory

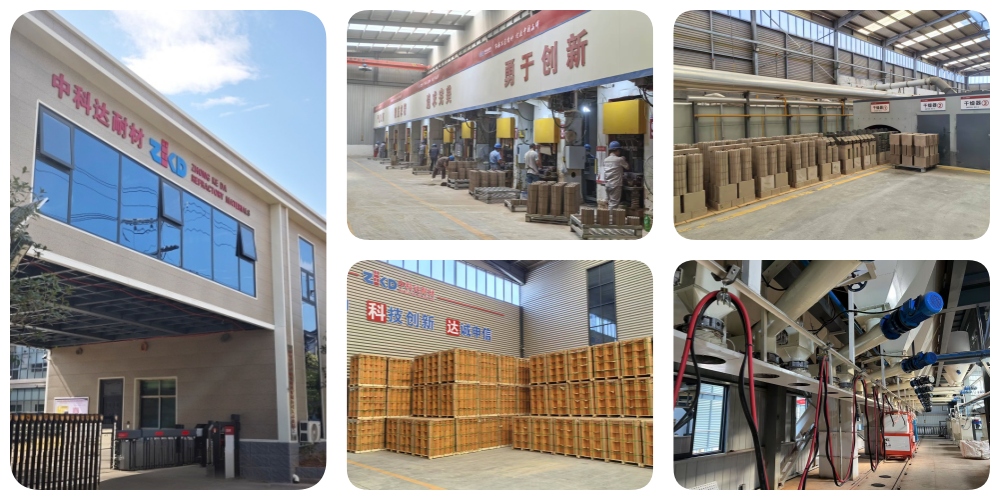

<a href="https://www.zkdrefractories.com">ZKD Refractory</a> supplies refractory materials for ceramic kilns and other high-temperature industrial applications.
Our product range includes:
• Fire Clay Bricks
• High Alumina Bricks
• Mullite Bricks
• Mullite Insulation Bricks
• Ceramic Fiber
• Refractory Castables
Different kiln structures and firing conditions require different refractory solutions.
We can provide refractory materials according to kiln type, operating temperature, dimensions and application requirements, including customized sizes for specific projects.
<a href="https://www.zkdrefractories.com/e_contact/">Need Refractory Materials for Your Ceramic Kiln?</a>
Choosing the right refractory material can help improve kiln performance, reduce heat loss and extend lining service life.
If you are building, repairing or upgrading a ceramic kiln, provide us with your kiln type, operating temperature, refractory dimensions and application requirements. We can recommend suitable refractory materials for your project.
