1. Introduction: The Importance of Refractory Lining in Maerz Lime Kilns

Maerz lime kilns are widely used in modern lime production due to their high efficiency, stable operation, and excellent fuel utilization. However, the long-term performance of a Maerz kiln largely depends on the quality and selection of <a href="https://www.zkdrefractories.com/e_products/">refractory lining materials</a>.



As one of the key components inside the kiln, <a href="https://www.zkdrefractories.com/e_products/High-Alumina-Brick-6-28.html">Maerz kiln refractory bricks</a> must withstand extremely demanding conditions, including high temperatures, thermal cycling, chemical erosion, and mechanical stress. The selection of suitable <a href="https://www.zkdrefractories.com/e_products/Cement-Kiln-Solutions-12.html">lime kiln refractory bricks</a>  directly affects kiln service life, energy efficiency, and maintenance costs.



A reliable Maerz lime kiln refractory solution requires more than simply choosing materials with high temperature resistance. Different kiln zones require different refractory properties, such as high strength, low creep performance, thermal shock resistance, and corrosion resistance.



At Zhongkeda Refractory, we manufacture and supply customized <a href="https://www.zkdrefractories.com/e_productshow/?24-65-High-Alumina-Brick--High-Strength-Alumina-Refractory-Brick-24.html">high alumina bricks</a>, <a href="https://www.zkdrefractories.com/e_productshow/?47-Low-Porosity-Fire-Clay-Brick--High-Performance-Refractory-Brick-47.html">fire clay bricks</a>, and <a href="https://www.zkdrefractories.com/e_products/Refractory-Castable-7-14.html">other refractory materials</a> for lime kiln applications. Based on different operating conditions and kiln requirements, we help customers develop suitable refractory lining solutions to improve kiln reliability and extend service life.

2. Understanding the Working Conditions Inside a Maerz Lime Kiln

A Maerz lime kiln consists of several working zones, and each zone has different temperature, chemical, and mechanical requirements. Therefore, selecting the right refractory materials for each area is essential for achieving longer lining life and stable kiln operation.

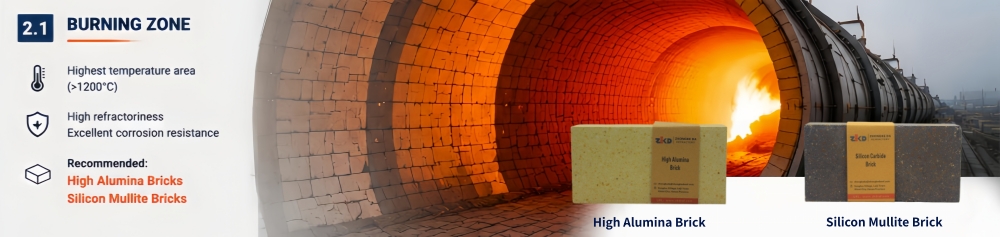

2.1 Burning Zone

The burning zone is the highest temperature area inside a Maerz kiln, where limestone is calcined into quicklime.

Main challenges include:

• High temperature exposure

• Chemical attack from lime dust and alkaline compounds

• Long-term thermal stress



Refractory materials used in this area require:

• High refractoriness

• Good volume stability

• Excellent corrosion resistance

Common materials:

• High Alumina Bricks

• Silicon Mullite Bricks (for more demanding conditions)

High alumina bricks provide excellent strength and corrosion resistance, while silicon mullite bricks can offer improved thermal shock resistance and wear resistance in severe operating conditions.

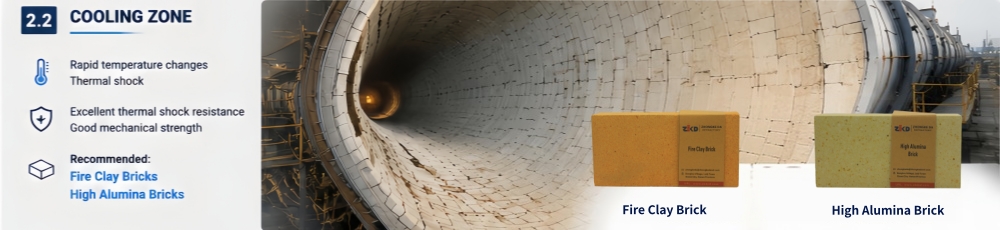

2.2 Cooling Zone

The cooling zone experiences frequent temperature fluctuations caused by cooling air circulation.

Main challenges:

• Thermal shock

• Mechanical impact

• Abrasion from material movement

Required properties:

• Excellent thermal shock resistance

• Good mechanical strength



Common materials:

• Fire Clay Bricks

• High Alumina Bricks

• SiC-containing refractories for special applications

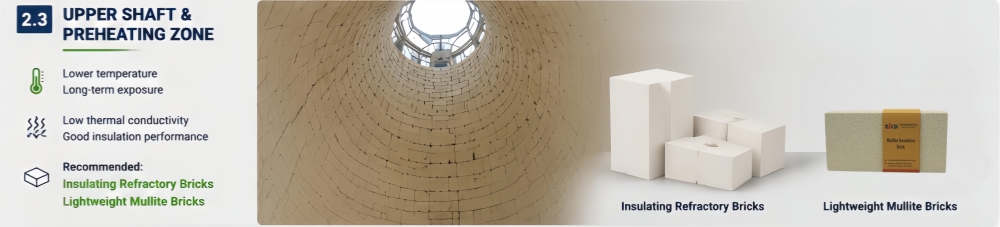

2.3 Upper Shaft and Preheating Zone

Compared with the burning zone, the upper shaft operates at lower temperatures. However, the refractory lining must maintain stable performance during long-term operation.

Required properties:

• Low thermal conductivity

• Good insulation performance

• Stable structure

Common materials:

• Insulating Refractory Bricks

• Lightweight Mullite Insulation Bricks

These materials help reduce heat loss and improve energy efficiency.

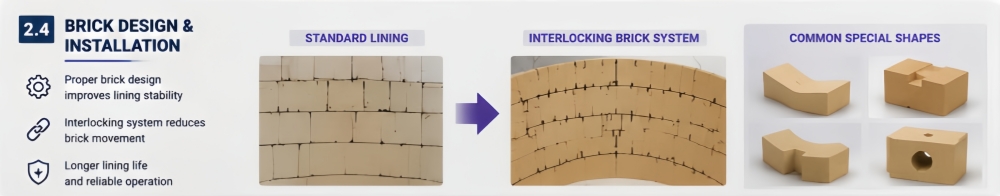

2.4 Brick Design and Installation

Besides refractory material selection, brick shape and installation quality also influence kiln lining performance.

Depending on kiln design, special-shaped bricks and interlocking brick systems may be used to improve:

• Lining stability

• Brick fixation

• Service life


3. Key Requirements for Refractory Materials Used in Maerz Kilns

Selecting refractory materials for a Maerz lime kiln requires more than considering the maximum operating temperature. A high-performance refractory lining must maintain its structure and performance under long-term thermal, mechanical, and chemical stresses.



3.1 High Temperature Resistance

Refractory bricks used in Maerz kilns must withstand continuous high-temperature operation. The material should maintain its strength and stability during long-term exposure rather than only resisting short-term peak temperatures.

Key indicators:

• Refractoriness

• Al₂O₃ content

• High temperature strength



3.2 Low Creep Performance

Under continuous high-temperature conditions, refractory materials may experience permanent deformation over time. Low creep performance helps maintain the original shape and stability of the kiln lining.

Benefits:

✓ Maintain kiln structure

✓ Reduce brick movement

✓ Extend lining service life



3.3 Thermal Shock Resistance

During kiln operation, refractory bricks are exposed to repeated heating and cooling cycles. Materials with poor thermal shock resistance may develop cracks or surface peeling.

Good thermal shock resistance helps prevent:

• Cracking

• Spalling

• Premature lining failure



3.4 Chemical Resistance

Lime production involves continuous contact with lime dust and alkaline compounds, which may react with refractory materials and reduce their service life.

Important properties:

• Dense structure

• Low porosity

• Good corrosion resistance

Key Requirement	Why It Matters	Important Indicators
High Temperature Resistance	Maintain performance during long-term heating	Refractoriness, Al₂O₃ content, hot strength
Low Creep Performance	Prevent deformation and lining movement	Creep rate, volume stability
Thermal Shock Resistance	Reduce cracking caused by temperature changes	Thermal shock resistance
Chemical Resistance	Resist lime dust and alkali attack	Low porosity, dense structure

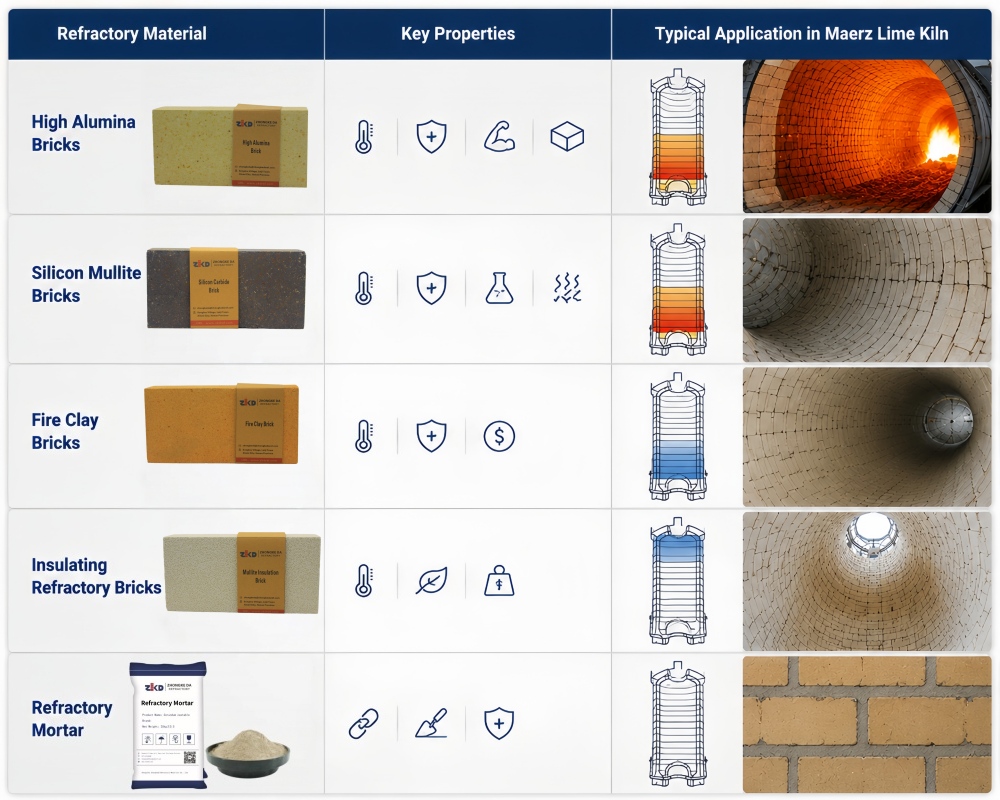

4. Recommended Refractory Materials for Maerz Lime Kilns
Based on different working conditions inside a Maerz lime kiln, various refractory materials are selected to achieve the best balance between performance and service life.

Refractory Material	Key Properties	Typical Application in Maerz Lime Kiln
High Alumina Bricks	High refractoriness, excellent corrosion resistance, high mechanical strength, good volume stability	Burning zone and high-temperature areas requiring strong resistance to chemical attack
Silicon Mullite Bricks	Excellent thermal shock resistance, good abrasion resistance, strong resistance to alkali attack	Severe operating conditions, areas with frequent temperature changes
Fire Clay Bricks	Good thermal shock resistance, stable performance, cost-effective solution	Cooling zone and areas with moderate temperature requirements
Insulating Refractory Bricks	Low thermal conductivity, lightweight structure, good insulation performance	Upper shaft, preheating zone, heat insulation layer
Refractory Mortar	Good bonding strength, excellent workability, improves lining stability	Brick installation, joints, maintenance and repair

5. How to Select the Right Refractory Bricks for Your Maerz Kiln Project

Selecting the right refractory bricks for a Maerz lime kiln requires a comprehensive understanding of the kiln design, operating conditions, and installation requirements. A reliable refractory solution should be customized according to the specific requirements of each project rather than simply selecting bricks based on temperature rating.

5.1 Consider Kiln Design and Operating Conditions

Before recommending refractory materials, it is important to understand the actual working conditions of the kiln.

Key factors include:

Project Information	Why It Matters
Kiln Model and Design	Different Maerz kiln designs may require different refractory configurations
Working Temperature	Determines the required refractoriness and thermal stability of materials
Production Capacity	Influences mechanical stress and lining requirements
Fuel Type	Different fuels may affect chemical conditions inside the kiln
Operating Conditions	Helps evaluate thermal shock, abrasion, and corrosion risks

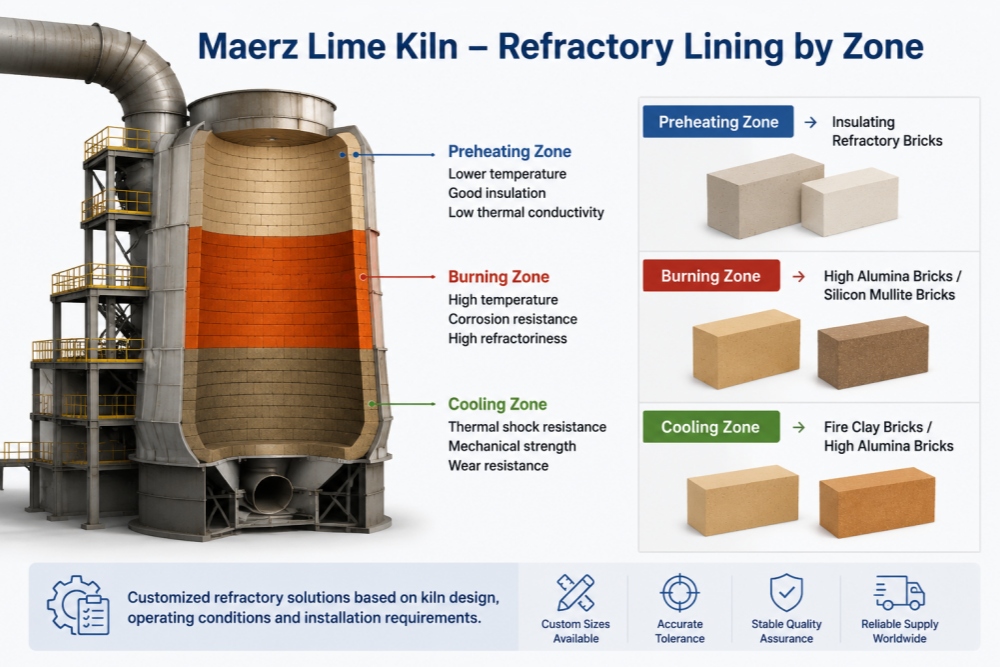

5.2 Select Materials Based on Different Kiln Zones

One common mistake in refractory selection is using the same type of brick throughout the entire kiln.

However, different zones inside a Maerz kiln have different requirements.

For example:

• Burning Zone: Requires high temperature resistance and corrosion resistance → High Alumina Bricks / Silicon Mullite Bricks

• Cooling Zone: Requires good thermal shock resistance and mechanical strength → Fire Clay Bricks / High Alumina Bricks

• Preheating Zone: Requires good insulation performance and low thermal conductivity → Insulating Refractory Bricks

A successful refractory solution is usually a combination of different materials designed for different working areas.

5.3 Pay Attention to Brick Size and Installation

Besides refractory material selection, brick dimensions and installation accuracy also have a significant impact on lining performance.
Important considerations include:



Standard and Customized Sizes

Maerz kilns may require:

• Standard refractory brick sizes

• Special-shaped bricks

• Customized dimensions according to kiln drawings

Tolerance Control

Accurate brick dimensions help:

• Improve installation efficiency

• Reduce gaps between bricks

• Enhance lining stability

• Extend service life



At Zhongkeda Refractory, we provide customized refractory bricks according to customer drawings and project requirements, including standard shapes and special-shaped products for different kiln applications.

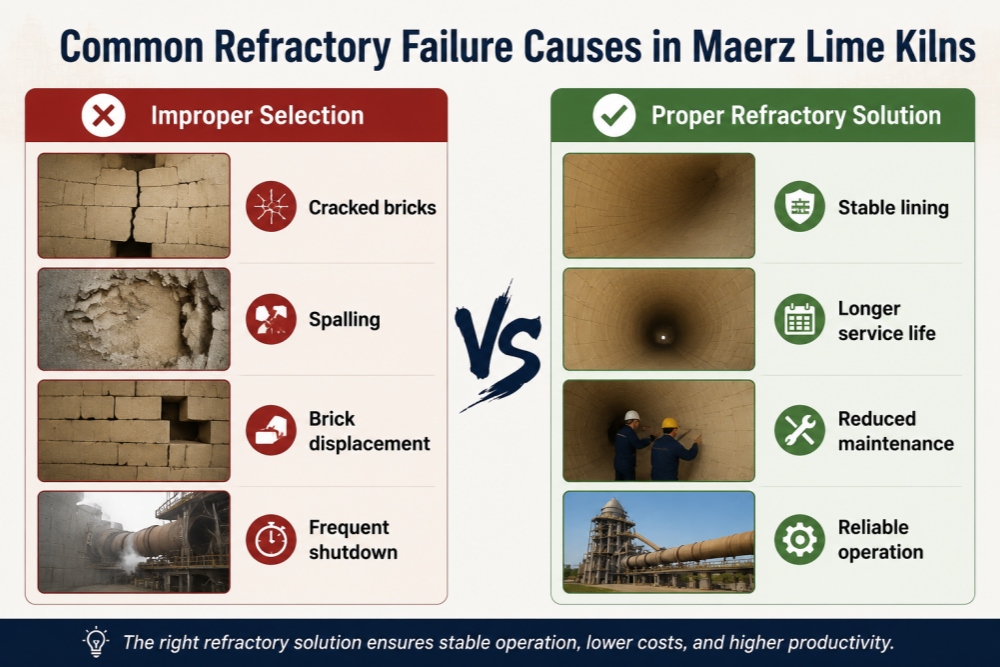

6. Common Problems Caused by Improper Refractory Selection

What Happens When the Wrong Refractory Materials Are Used?



Selecting unsuitable refractory materials for a Maerz lime kiln may lead to premature lining failure, unexpected downtime, and increased operating costs.

Although refractory bricks may appear similar in appearance, differences in material composition, density, porosity, and performance characteristics can significantly affect their service life under high-temperature conditions.

Common problems caused by improper refractory selection include:

6.1 Brick Cracking and Spalling

Main Causes:

• Poor thermal shock resistance

• Excessive temperature fluctuations

• Improper material selection for specific kiln zones

Possible Results:

• Brick surface damage

• Reduced lining thickness

• Accelerated refractory failure

Refractory materials with good thermal shock resistance can better withstand repeated heating and cooling cycles, helping to maintain stable kiln operation.

6.2 Short Refractory Service Life

Main Causes:

• Low material density

• High apparent porosity

• Insufficient high-temperature stability

• Poor corrosion resistance

Possible Results:

• Faster brick wear

• More frequent replacement

• Increased refractory consumption

For Maerz lime kilns, refractory materials should provide a balance between high temperature resistance, mechanical strength, and corrosion resistance.

6.3 Increased Maintenance Costs

Main Causes:

• Frequent refractory replacement

• Unexpected kiln shutdowns

• Incorrect refractory selection for operating conditions

Possible Results:

• Production losses

• Higher maintenance expenses

• Reduced kiln efficiency

A properly designed refractory lining solution can reduce maintenance frequency and improve the overall economic performance of the kiln.

Summary: Choosing the Right Refractory Matters

The lowest initial material cost does not always mean the lowest overall cost.

A suitable refractory solution should consider:

✓ Kiln operating conditions

✓ Different working zones

✓ Material performance requirements

✓ Expected service life

By selecting the right refractory materials, operators can achieve more stable production, longer lining life, and lower maintenance costs.

7. Zhongkeda Refractory Solutions for Maerz Lime Kilns

Choosing the right refractory supplier is as important as selecting the right refractory materials. A reliable supplier should not only provide high-quality refractory products but also understand the operating requirements of lime kiln applications.

At Zhongkeda Refractory, we provide customized refractory solutions for Maerz lime kiln projects, including:

✓ High Alumina Bricks for high-temperature and high-load areas

✓ Fire Clay Bricks with good thermal shock resistance and stable performance

✓ Silicon Mullite Bricks for demanding operating conditions

✓ Insulating Refractory Bricks for heat efficiency improvement

✓ Customized Refractory Products according to customer drawings and project requirements



Our advantages include:



Manufacturer Direct Supply

As a refractory manufacturer, we control the production process from raw material selection to final inspection, ensuring consistent product quality and reliable delivery.

Customized Dimensions and Shapes

Different kiln projects may require different brick sizes and shapes. We provide customized refractory bricks according to technical drawings, installation requirements, and customer specifications.

Strict Quality Inspection

Each batch of refractory products is inspected to ensure compliance with technical requirements, including chemical composition, physical properties, and dimensional accuracy.

Export Experience and Technical Support

With experience in international refractory supply, Zhongkeda supports customers with product selection, project communication, and customized solutions for different industrial applications.

8. Conclusion

The refractory lining is one of the most important factors affecting the performance and service life of a Maerz lime kiln.

Selecting suitable refractory materials based on kiln zones, operating conditions, and project requirements can help achieve:



✓ Correct refractory selection

✓ Longer kiln service life

✓ Lower maintenance costs

✓ More stable lime production



A successful refractory solution is not only about choosing high-temperature materials, but also about understanding the complete working environment of the kiln.



Contact Zhongkeda Refractory for customized refractory solutions for your Maerz lime kiln project.
