10 Industrial Applications Where Refractory Cement Solves Real Furnace Problems

10 Industrial Applications Where Refractory Cement Solves Real Furnace Problems


July 15                                    Post By Orietta
Meta Description
Discover 10 real industrial applications of refractory cement, including steel furnaces, rotary kilns, boilers, foundries, and furnace repairs. Learn how to choose the right calcium aluminate cement for different working conditions.


What Is Refractory Cement

Refractory cement is a high-temperature resistant binder used to make refractory castables, mortars, and monolithic linings for furnaces, kilns, boilers, and other industrial equipment. Unlike ordinary Portland cement, it is designed to maintain its strength and stability under extreme heat.


The most widely used refractory cement is Calcium Aluminate Cement (CAC), which contains a high percentage of alumina. It provides excellent heat resistance, rapid strength development, and good thermal shock performance.


Depending on the grade and application, refractory cement can be used in systems operating at temperatures of 1,200°C to over 1,600°C. It is widely used in the steel, cement, foundry, glass, and petrochemical industries.


Refractory cement is not ordinary construction cement. It is specifically developed for high-temperature environments where Portland cement would quickly crack or fail.

Why Industrial Applications Matter More Than Temperature Alone

When selecting refractory cement, many buyers focus on one specification: maximum service temperature. However, in real industrial environments, temperature is only one part of the equation.

Two furnaces operating at the same temperature may experience completely different lining life because their working conditions are different.

Every Furnace Has Different Challenges

Working Condition
Typical Challenge
Thermal Shock
Frequent heating and cooling cycles
Abrasion
Continuous wear from materials or gas flow
Chemical Attack
Slag, alkalis, molten metal or corrosive gases
Mechanical Stress
Vibration, impact or structural load
Heating Rate
Improper drying or rapid heat-up

Evidence 1Thermal Shock

Same Temperature, Different Service Life

Factor Steel Reheating Furnace
Ceramic Tunnel Kiln
Temperature
~1300°C
~1300°C
Main Challenge
Frequent thermal cycling

Continuous high-temperature operation

Thermal Shock
⭐⭐⭐⭐⭐

Expected Lining Issue
Cracking & spalling

Thermal aging

Cement Selection Focus
Thermal shock resistance

Long-term thermal stability

Key Takeaway:Two furnaces operating at the same temperature may require different refractory cement because their heating cycles are completely different.


Evidence 2Chemical Attack

Lower Temperature Doesn't Always Mean Easier Conditions

Factor
Waste Incinerator
Ceramic Kiln
Temperature
1000–1100°C
1450°C
Main Challenge
Corrosive gases & alkalis

High temperature

Chemical Attack
⭐⭐⭐⭐⭐

Typical Atmosphere
Chlorides, sulfur compounds, alkali vapors
Relatively stable
Expected Lining Issue
Chemical corrosion

Heat aging

Cement Selection Focus
Chemical resistance

High-temperature performance

Key Takeaway:A lower-temperature furnace can be more demanding than a hotter furnace if the lining is continuously exposed to aggressive chemicals.


Evidence 3Abrasion

Mechanical Wear Can Destroy a Lining Faster Than Heat

Factor
CFB Boiler

Ceramic Kiln

Temperature
850–1000°C
1450°C
Main Challenge
Continuous particle erosion
Stable high temperature
Abrasion
⭐⭐⭐⭐⭐

Material Contact
Fly ash, coal particles, bed material
Minimal
Expected Lining Issue
Surface wear and thinning
Thermal aging
Cement Selection Focus
Abrasion resistance
Heat resistance

Key Takeaway:In circulating fluidized bed (CFB) boilers, continuous erosion from fly ash and bed materials can significantly reduce lining life, even though operating temperatures are much lower than those of ceramic kilns.


What Really Determines Refractory Cement Performance?

Working Condition
Typical Industry
Why It Matters
Thermal Shock
Steel reheating furnace

Causes cracking and spalling during rapid heating/cooling

Chemical Attack
Waste incinerator

Corrodes the lining even at moderate temperatures

Abrasion
CFB boiler
Continuously wears away the refractory surface
Mechanical Stress
Rotary kiln

Creates structural fatigue and lining movement

Heating Schedule
Most industrial furnaces

Improper curing or rapid heat-up can damage the lining

Selecting refractory cement is not simply about choosing the highest temperature rating. It requires understanding the actual operating conditions the lining will face throughout its service life

10 Real Industrial Applications of Refractory Cement

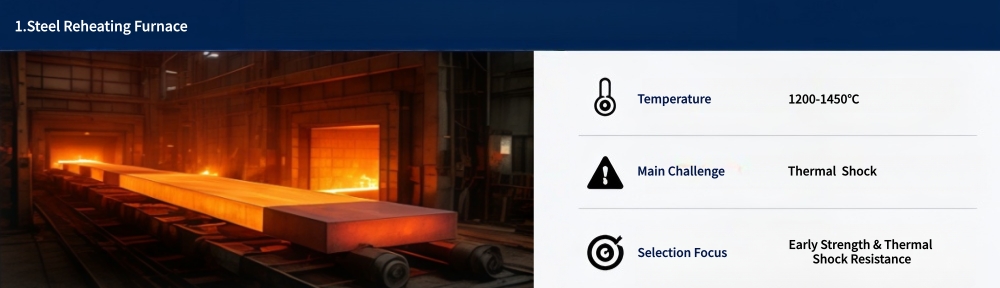

1.Steel Reheating Furnaces

Core Challenge: Thermal Shock

Brief Introduction

Steel reheating furnaces operate under frequent heating and cooling cycles, making thermal shock one of the leading causes of refractory lining failure. Refractory cement helps provide reliable bonding and supports durable castable performance during repeated production cycles.

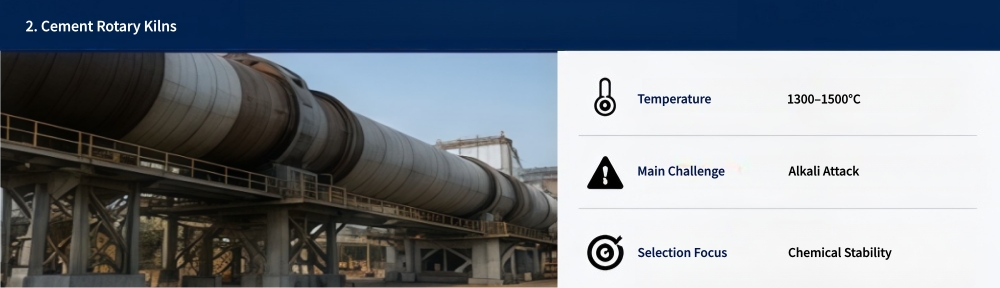

2.Cement Rotary Kilns

Core Challenge:
Chemical Attack & Mechanical Movement

Brief Introduction

Rotary kilns continuously expose refractory linings to high temperatures, alkali vapors, and mechanical rotation. Refractory cement serves as the hydraulic binder in castables, helping maintain lining stability under demanding operating conditions.

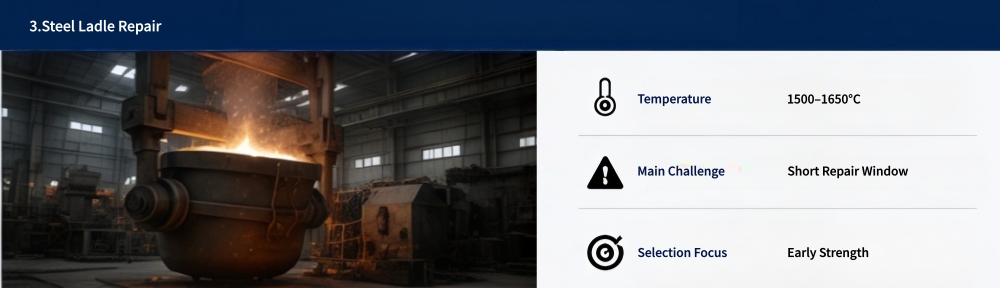

3.Steel Ladle Repair

Core Challenge: Fast Maintenance

Brief Introduction

Steel ladles require frequent repairs between production cycles. Refractory cement provides rapid strength development and reliable bonding, helping reduce repair time and restore lining performance efficiently.

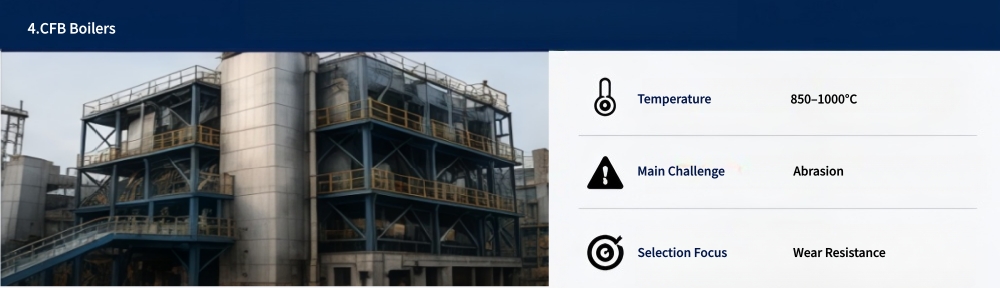

4.CFB Boilers

Core Challenge: Abrasion

Brief Introduction

CFB boilers operate at moderate temperatures but suffer severe erosion from fly ash and circulating particles. Abrasion resistance is often more important than maximum temperature when selecting refractory cement.

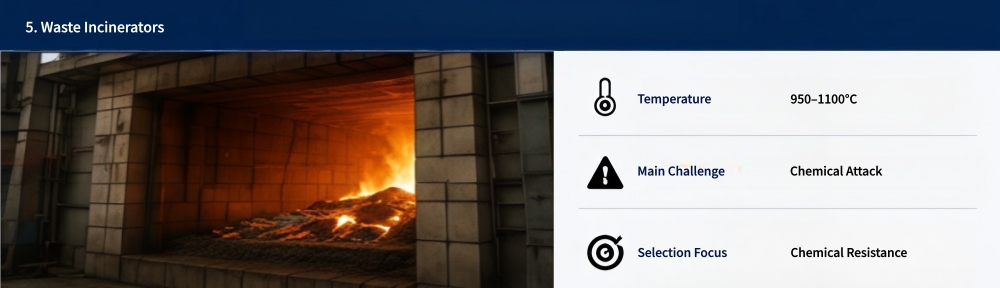

5.Waste Incinerators

Core Challenge: Chemical Corrosion

Brief Introduction

Waste incinerators expose refractory linings to corrosive gases, alkalis, and chlorides. Chemical attack often becomes the primary cause of lining deterioration, making material compatibility essential.

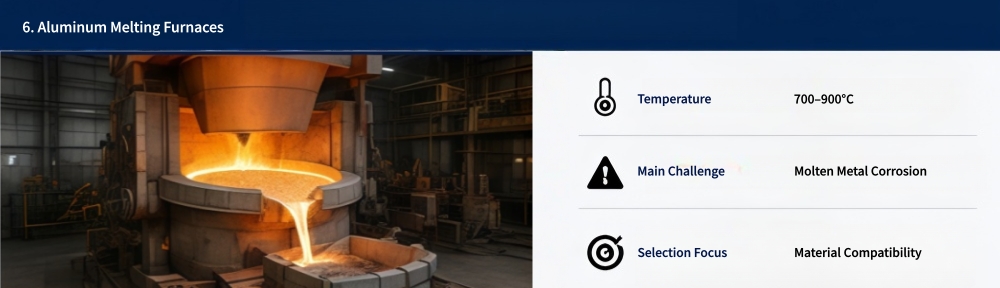

6.Aluminum Melting Furnaces


Core Challenge: Molten Aluminum Penetration

Brief Introduction

Although operating temperatures are relatively low, molten aluminum can penetrate unsuitable refractory materials and shorten lining life. Proper refractory cement selection helps improve castable stability and corrosion resistance.



7.

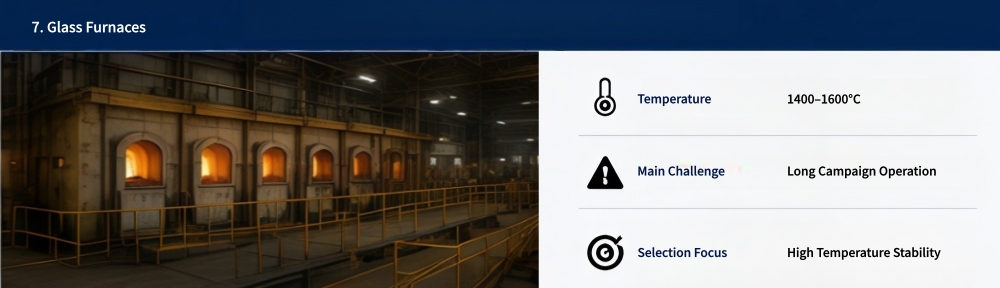

Glass Furnaces

Core Challenge: Long-Term High Temperature Stability

Brief Introduction

Glass furnaces operate continuously for extended periods with very limited shutdown opportunities. Refractory cement used in maintenance materials must maintain long-term bonding strength and thermal stability.



8.
Foundry Furnaces

Core Challenge: Frequent Repairs

Brief Introduction

Foundries often require localized refractory repairs between production runs. Refractory cement provides dependable bonding for repair castables while minimizing downtime.



9.
Petrochemical Furnaces

Core Challenge: Continuous High-Temperature Operation

Brief Introduction

Petrochemical furnaces operate continuously under demanding thermal and chemical conditions. Refractory cement contributes to the long-term stability of monolithic refractory linings used during maintenance and repair.


10.Fireplaces & Pizza Ovens

Core Challenge: Repeated Residential Heating Cycles

Brief Introduction

In residential and commercial heating systems, refractory cement is commonly used to install or repair firebricks. Good adhesion and resistance to repeated heating cycles help maintain structural integrity and safe operation.



Common Problems When Using Refractory Cement
Refractory cement is widely used in high-temperature applications, but improper selection and installation may lead to early failure.

Understanding common problems can help improve lining performance and reduce maintenance costs.

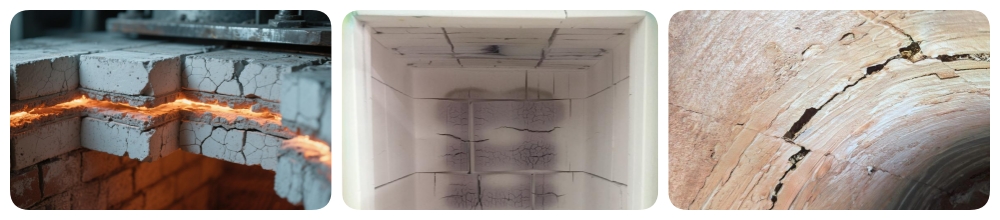

1.Cracking After Drying or Heating

Common causes:

• Excessive water during mixing

Rapid heating after installation

Insufficient curing time

How to avoid:

Follow proper mixing, curing and heating procedures.


2. Low Strength During Service

Common causes:

Incorrect cement grade

Poor formulation design

Improper installation

How to avoid:

Select refractory cement according to the actual working conditions.

3.Poor Thermal Shock Resistance

Frequent heating and cooling cycles can cause expansion and cracking.

The best material is not only about maximum temperature resistance, but also about matching the operating environment.

4.Wrong Product Selection

Different Applications Require Different Refractory Cement Grades

Choosing the right refractory cement depends on the actual working conditions, not only the service temperature.



5.Improper Storage
Moisture and long storage time may affect cement performance.

Store in a dry environment and keep packaging sealed.


This is why refractory cement selection should always be based on operating conditions, including temperature, chemical exposure, mechanical stress and heating cycles.

How to Choose the Right Refractory Cement

Start with the Working Conditions, Not Just Temperature


Many buyers select refractory cement mainly based on the maximum service temperature.

However, temperature resistance is only one factor.

The right refractory cement should be selected according to:

• Working temperature

Chemical environment

Mechanical stress

Thermal cycling

Installation requirements

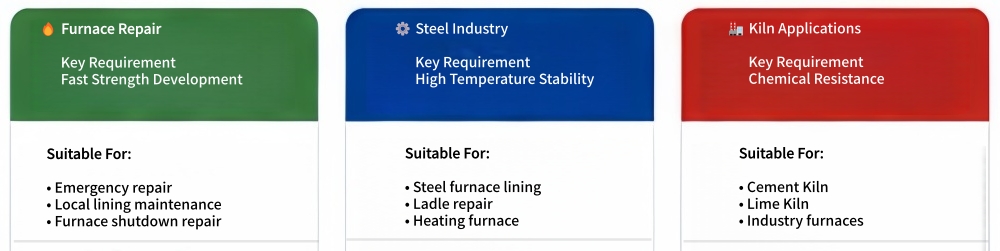

1.Consider the Application Area

Application Main Consideration
Furnace repair
Fast setting and early strength
Steel industry
High temperature stability
Cement kiln
Chemical resistance
Casting industry
Easy installation and durability

2. Select the Correct Alumina Content
CA50 Refractory Cement CA70 Refractory Cement
CA80 Refractory Cement

Al₂O₃: Around 50%

Al₂O₃: Around 70%
Al₂O₃: Around 80%

Suitable for:

• General refractory castables

• Furnace maintenance

• Medium temperature applications

Suitable for:

Higher temperature castables

Steel industry applications

More demanding environments

Suitable for:

High-performance castables

Severe thermal conditions

Advanced industrial furnaces

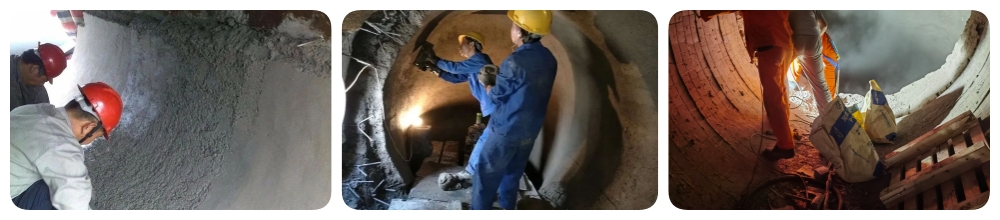

3.Consider the Installation Method

Different construction methods require different cement characteristics.

Castable Application Repair Application

Need:

✓ Good flowability

✓ Controlled setting time

✓ High bonding strength

Need:

✓ Fast hardening

✓ Early strength development

✓ Easy operation



4. Work with a Manufacturer Who Understands Applications

Choosing refractory cement is not only about purchasing a product with higher specifications.

A professional refractory manufacturer can help you select:

Suitable cement grade

Proper formulation

Correct application method

Based on your actual operating conditions.



Frequently Asked Questions
Q:Can refractory cement withstand direct flame?

A:Yes. Refractory cement is designed to withstand direct flame and high temperatures when used in a properly designed refractory system. Its performance depends on the cement grade, refractory aggregates, and the specific operating conditions.


Q:How long does refractory cement last?

A:Service life depends on the application, installation quality, and operating conditions. Factors such as thermal shock, abrasion, and chemical attack have a greater impact on durability than temperature alone.

Q:Can refractory cement be used outdoors?

A:Yes. Refractory cement can be used for outdoor fireplaces, pizza ovens, and similar applications. For long-term outdoor exposure, proper curing and protection against moisture are recommended.

Q:Is refractory cement waterproof?

A:No. Standard refractory cement is heat resistant but not waterproof. Long-term exposure to moisture may affect performance, so outdoor structures should include appropriate weather protection.

Q:How long should refractory cement cure?

A:Most refractory cements require at least 24 hours of curing before controlled drying and gradual heating. Always follow the manufacturer's curing instructions to reduce the risk of cracking.

Q:Can refractory cement be used for pizza ovens?

A:Yes. Refractory cement is commonly used for installing and repairing firebricks in wood-fired pizza ovens. Always choose a product suitable for high-temperature masonry applications.

Q:Can refractory cement replace refractory castable?

A:No. Refractory cement is a binder, while refractory castable is a complete refractory material containing aggregates, cement, and additives. They are designed for different purposes.

Couclusion
Every furnace operates under different conditions. Selecting the right refractory cement is not only about temperature rating—it also depends on thermal cycling, chemical exposure, mechanical stress, and maintenance requirements. Understanding these factors helps improve lining performance, reduce downtime, and extend service life.

Explore our CA50 Refractory Cement, CA70 Refractory Cement, and CA80 Refractory Cement calcium aluminate cement products or contact our technical team for application-specific recommendations.
